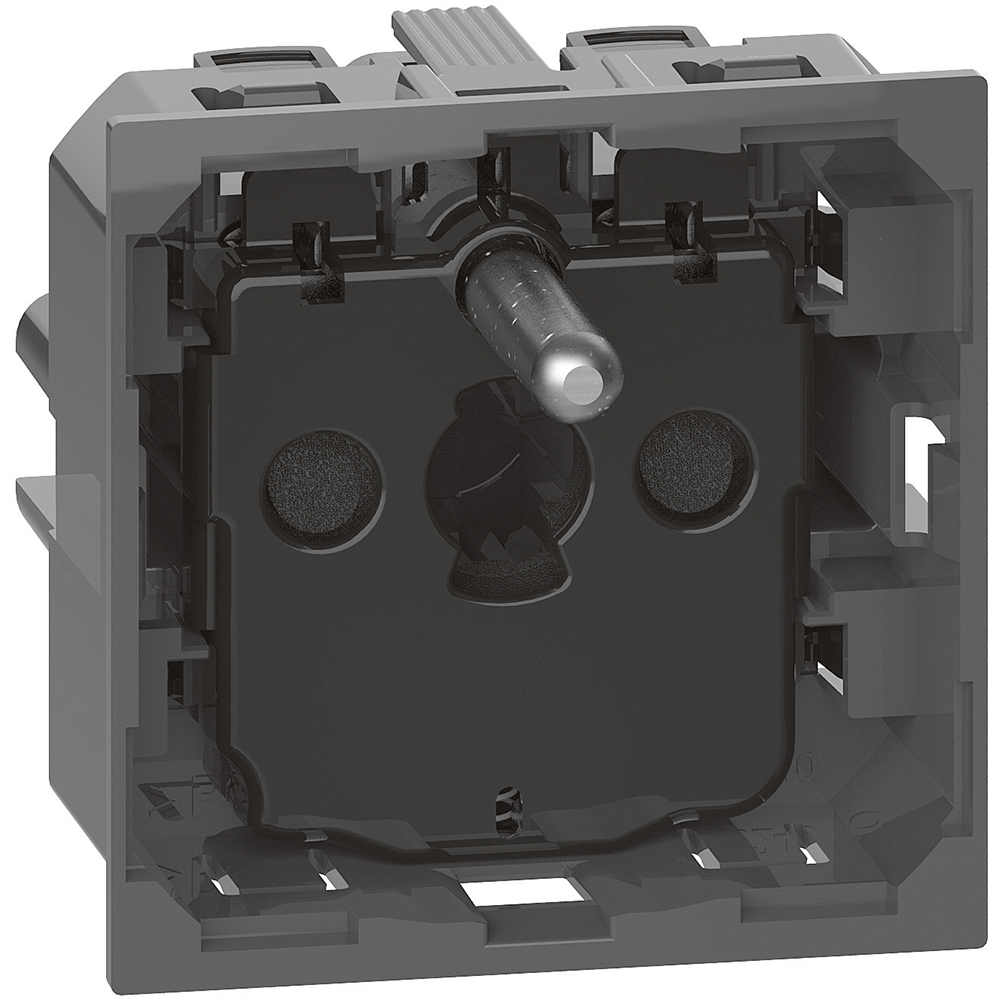

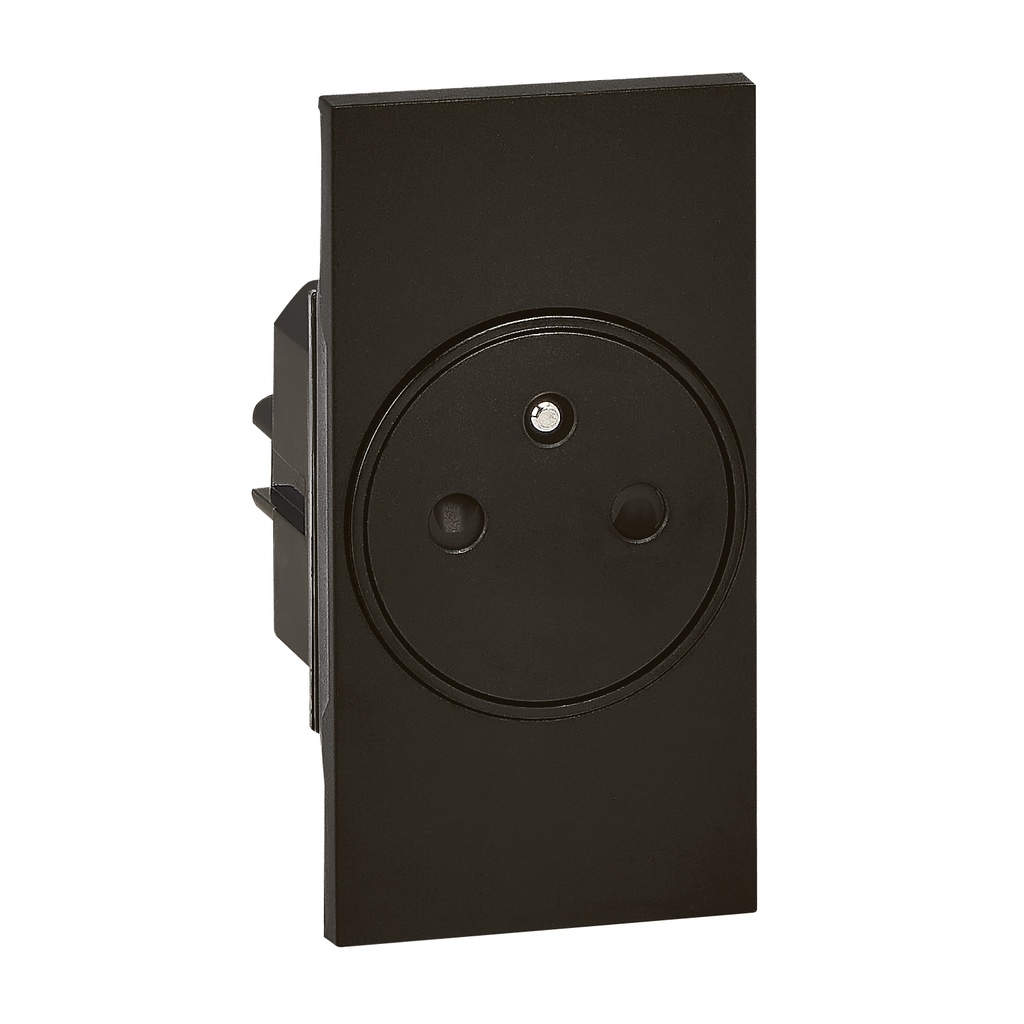

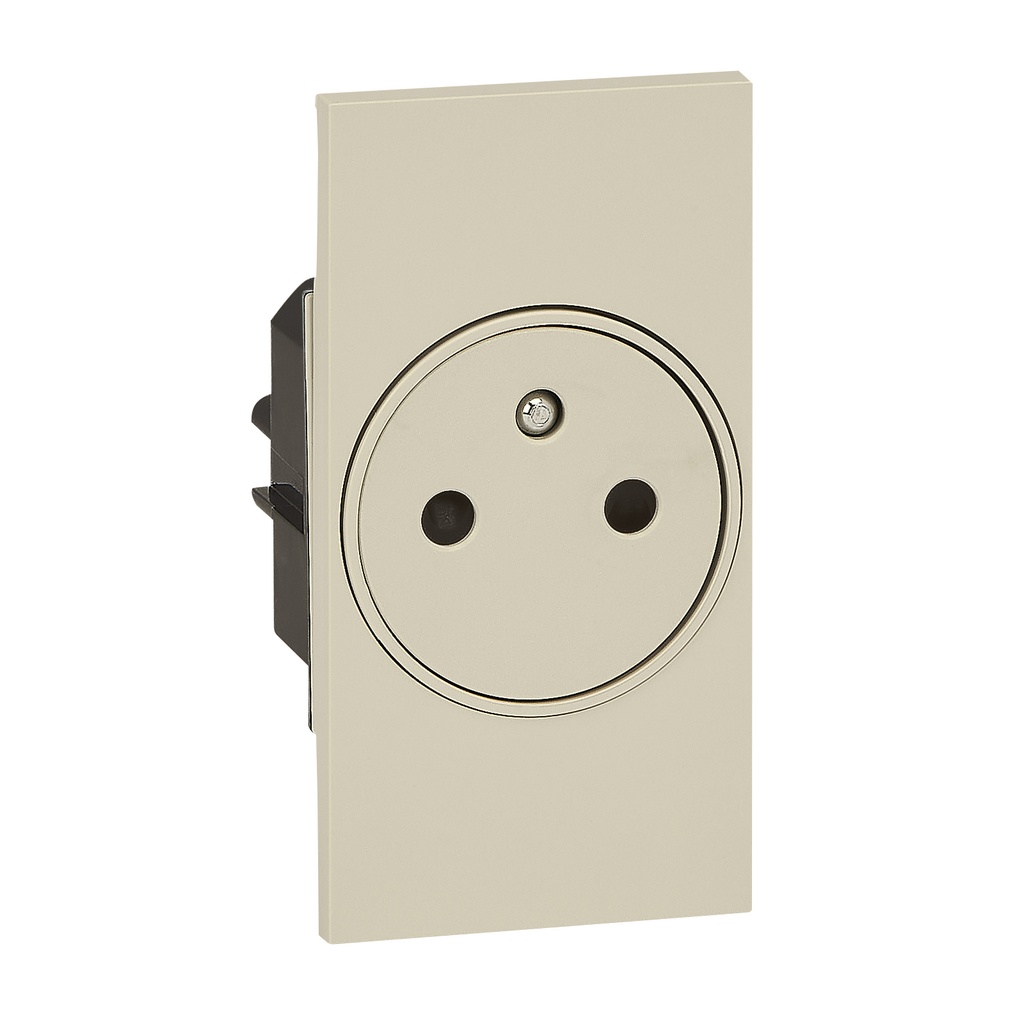

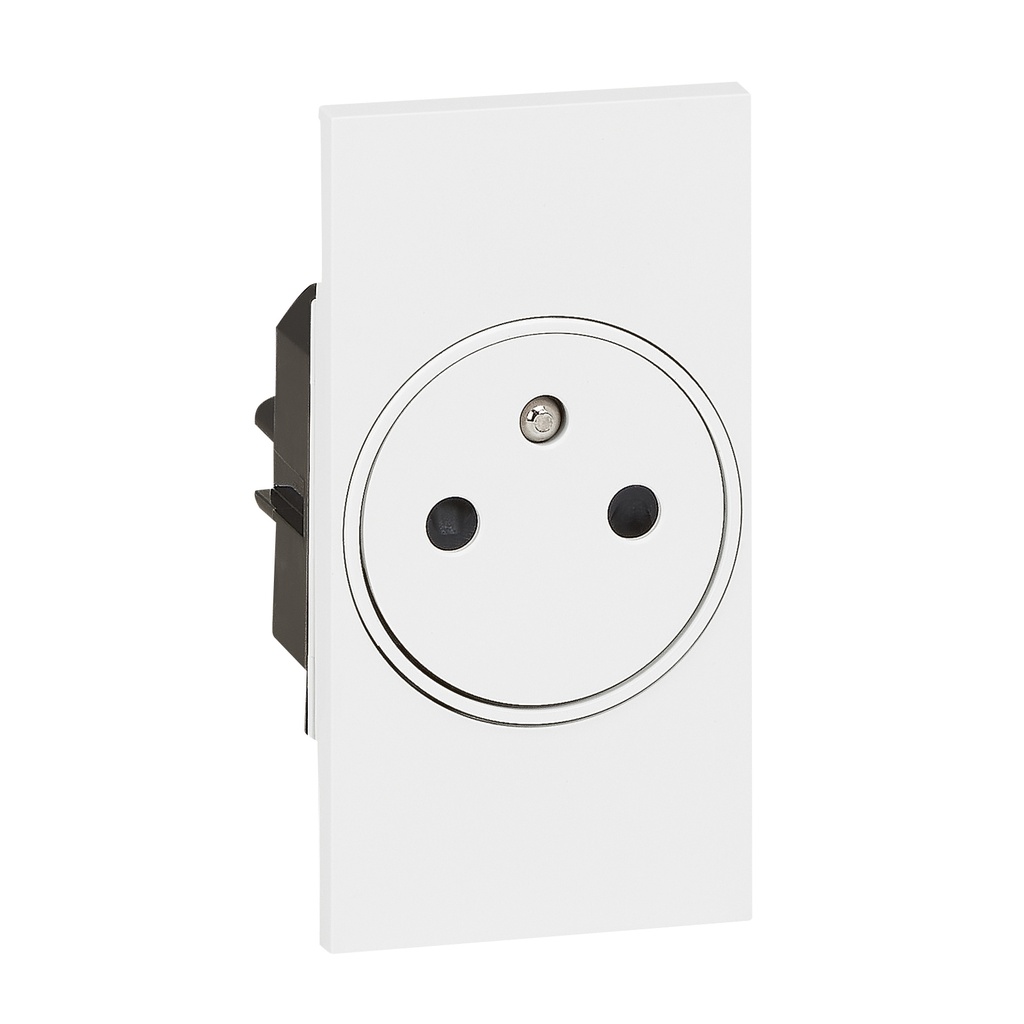

Контакт френски стандарт 2P+E 2 модула 16A механизъм Living Now Bticino
Модел: BT-K4142A
| Марка | Legrand |
| Подразделение | LEGRAND_BT |
| Вид продукт | Контакт |
| Стандарт | Френски (Type E) |
| Mounting method | Flush-mounted |
| Rated fault current | 16 mA |
| RAL-number (similar) | 9011 |
| Device depth | 31 mm |
| Device width | 45 mm |
| Device height | 45 mm |
| Цвят | Black |
| Concurrently switching neutral conductor | Не |
| Frequency | 50 … 60 Hz |
| Model | Earthing pin |
| Nominal voltage | 250 V |
| Material | Plastic |
| Halogen free | Да |
| Surface protection | Untreated |
| Type of fastening | Snap mounting (engagement) |
| Label space/information surface | Не |
| Surface finishing | Matt |
| Material quality | Thermoplastic |
| Transparent | Не |
| Mounting direction | Vertical |
| With hinged lid | Не |
| Anti-bacterial treatment | Не |
| Impact strength | IK04 |
| Suitable for degree of protection (IP) | IP20 |
| Imprint/indication | None |
| Брой модули | 2 |
| Min. depth of built-in installation box | 40 mm |
| Assembly arrangement | Basic element with central cover plate |
| Connection type | Screwed terminal |
| Compatible with Apple HomeKit | Не |
| Compatible with Amazon Alexa | Не |
| Compatible with Google Assistant | Не |
| IFTTT support available | Не |
| With signal lamp | Не |
| Overvoltage protection | Не |
| Rotated central insert | Не |
| Special power supply | None |
| Fault current protection | Не |
| Eject-mechanism | Не |
| Number of ports USB-C | 0 |
| Number of ports USB-A | 0 |
| Metallic colour | Не |
| With Wi-Fi signal repeater | Не |
| Number of socket outlets switchable | 0 |
| Number of active contacts (square) | 0 |
| Protective contact | Round |
| With on/off switch | Не |
| Number of active contacts (flat) | 0 |
| Number of active contacts (round) | 2 |
| With orientation lighting | Не |
| With function lighting | Не |
| Insulated mounting | Не |
| Number of socket outlets | 1 |
| Number of phases | 1 |
| Lockable | Не |
| With built-in bluetooth speaker | Не |
| With miniature fuse | Не |
| Socket outlets phase-separated | Не |
| Number of loop throughs | 1 |
| With enhanced contact protection | Да |
| With loop through function | Не |
| Nominal current | 16 A |
| For heavy conditions according to VDE | Не |
