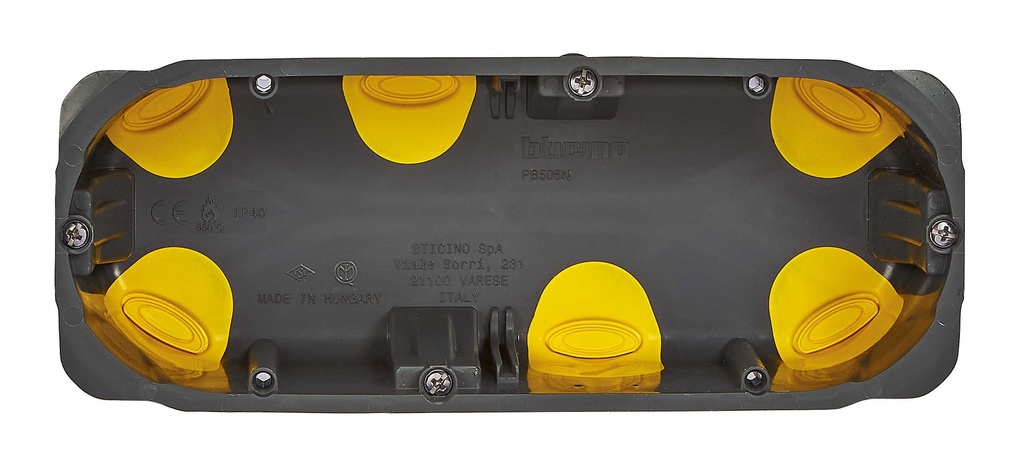

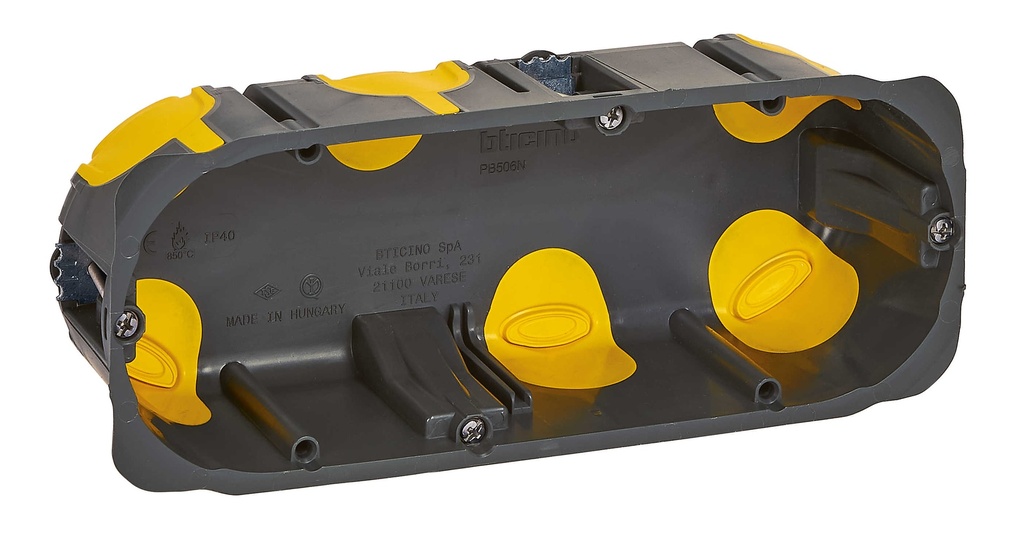

Конзолна кутия за гипсокартон 6/7 мод. дълб.52мм Bticino
Модел: BT-PB506NN
| Марка | Legrand, Legrand |
| Подразделение | LEGRAND_BT, LEGRAND_BT |
| Вид продукт | Конзола / монтажна кутия |
| Ниво на защита IP | IP40 |
| Mounting method | Hollow wall |
| Цвят | Black |
| Model | Single |
| Shape | Rectangular |
| Length | 183 mm |
| Width | 71 mm |
| Number of inlets | 6 |
| For tube diameter | 20/25 mm |
| Pipe locking | Не |
| Sealable | Не |
| Cover model | None |
| Inlet from the rear | Да |
| Equipped with | None |
| Clamp position fixed | Не |
| With screws | Да |
| Circuit integrity | None |
| Construction type | Device connection box (round/square) |
| Cover attachment | Other |
| Air tight | Да |
| Material | Plastic |
| Halogen free | Не |
| With screening | Не |
| Surface protection | Untreated |
| Nozzle | None |
| Luminaire hook mounting | Не |
| Transparent cover | Не |
| For number of electric fittings | 6 |
| Mounting switching equipment | Screwing |
| Inner depth | 50 mm |
| Depth | 52 … 52 mm |
| Number of included spouts | 7 |
| Couplable | Не |
| Housing feed-through by step membrane | Не |
| Housing feed-through by nozzle | Да |
| Pipe locking optional | Не |
| Provided with revolving ring | Не |
| Housing feed-through by seal membrane | Да |
| Housing feed-through by break-out opening | Не |
| Suitable for cable diameter | 1 … 2.5 mm |
| Number of poles of the clamp | 0 |
| Number of non-adjustable device fixing lugs | 0 |
| Number of adjustable device fixing lugs | 2 |
| Special application | None |
| With partition panel | Не |
| Max. conductor cross section | 2.5 mm² |
| Compliant with BS 4662 | Не |
