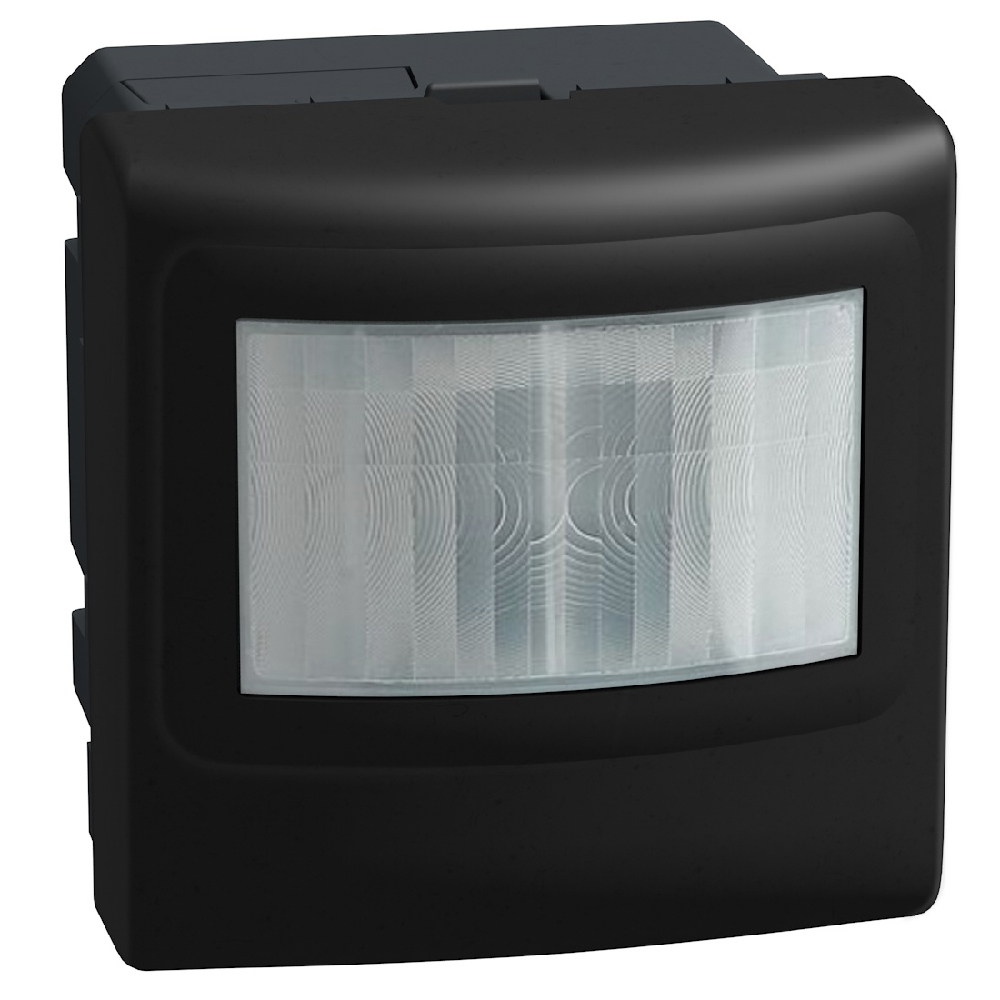

Датчик за движение PIR, 170°, обхват 8m @ h=1.2 модула, LED ≤ 500W, изисква неутрала 2 модула цвят Графит Light Now Bticino

---

• Response value luminosity adjustable

  • Не

• Movement sensor/presence detector technology

  • Passive infrared

• Scan angle

  • 120 °

• Max. presence range

  • 40 m²

• Number of switching zones

  • 1

• Min. starting current

  • 0.5 A

• Forced switch on

  • Не

• Switching-on delay

  • 0 s

• Built-in length

  • 45 mm

• Switch-off delay

  • 0 s

• Вид продукт

  •

• Вид продукт

  •

• Ниво на защита IP

  • IP20

• Voltage type

  • AC

• Mounting method

  • Flush-mounted

• Built-in depth

  • 35 mm

• RAL-number (similar)

  • 9011

• Цвят

  • Black

• Frequency

  • 50 … 60 Hz

• Model

  • Movement sensor

• Width

  • 45 mm

• Material

  • Plastic

• Halogen free

  • Да

• Surface protection

  • Lacquered

• Depth

  • 49.5 mm

• Height

  • 45 mm

• Surface finishing

  • Matt

• Material quality

  • Thermoplastic

• Transparent

  • Да

• Anti-bacterial treatment

  • Не

• Impact strength

  • IK04

• Built-in width

  • 45 mm

• Min. depth of built-in installation box

  • 45 mm

• Connection type

  • Screwed terminal

• Compatible with Apple HomeKit

  • Не

• Compatible with Amazon Alexa

  • Не

• Compatible with Google Assistant

  • Не

• Nominal voltage

  • 230 … 230 V

• IFTTT support available

  • Не

• Substation input

  • Не

• Max. switching power LED

  • 0.5 W

• Ambient temperature

  • 5 … 40 °C

• With remote control

  • Не

• Bridging switch

  • Не

• Staircase light controller

  • Да

• Min. switch-on time

  • 30 s

• Detection angle horizontal

  • 2 … 30 °

• Networkable

  • Да

• Response value sensitivity adjustable

  • Да

• Animal zone

  • Не

• With alarm function

  • Не

• Optimum mounting height

  • 1.2 m

• Max. duty cycle

  • 600 min

• With acoustic sensor

  • Не

• Background monitoring

  • Не

• Max. starting current

  • 2 A

• Connection cable length

  • 0 mm

• With connection cable

  • Не

• With signal unit

  • Не

• Suitable for wireless transmission

  • Не

• Dim function with dimmer basic element

  • Не

• Forced switch off

  • Не

• Diameter reach on floor

  • 6 m

• Remote operation

  • Не

• Constant light control

  • Да

• Max. reach sideways

  • 6 m

• Max. reach frontally

  • 6 m

• Creep-under protection

  • Да

• Teach-function for response value luminosity

  • Не

• HVAC-control

  • Не

• Suitable for wall mounting

  • Да

• Suitable for C-load

  • Не

• Suitable for ceiling mounting

  • Не
