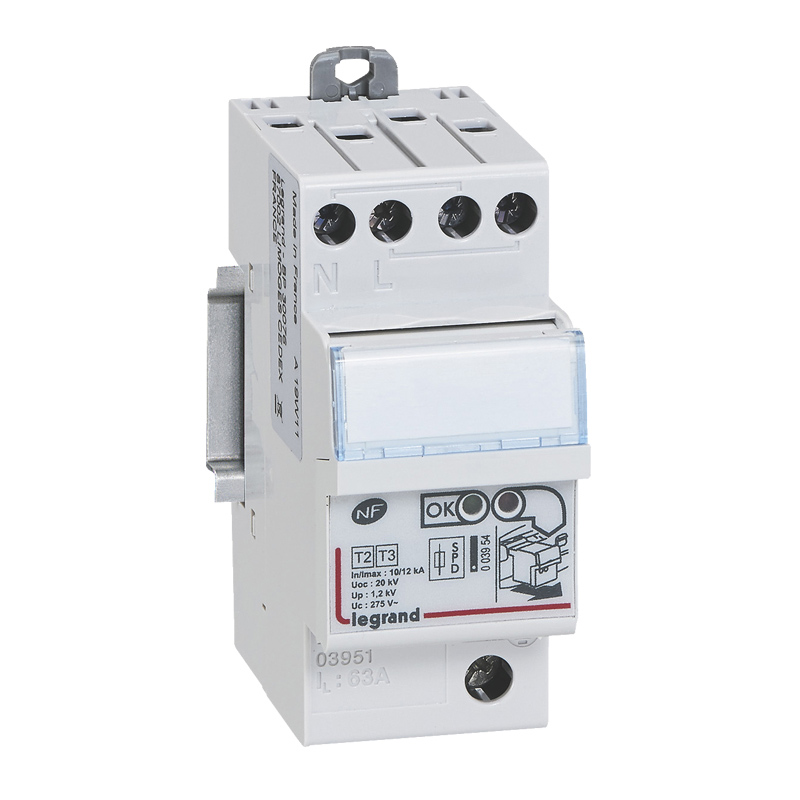

Катоден отводител тип 2+3 SPD 12kA 275V 1P+N L Legrand

---

• Max. discharge surge current (8/20)

  • 12 kA

• System configuration DC

  • Не

• Вид продукт

  •

• Ниво на защита IP

  • IP20

• Mounting method

  • DIN rail (top hat rail) 35 mm

• System configuration TN-C-S

  • Да

• Nominal voltage AC

  • 230 V

• System configuration TN-S

  • Не

• Construction size

  • 2 modular spacing

• System configuration other

  • Не

• System configuration TT

  • Да

• Signalling at the device

  • Optical

• Number of conductors (without earthing)

  • 2

• System configuration IT

  • Не

• System configuration TN-C

  • Да

• System configuration TN

  • Да

• Max. continuous voltage AC

  • 275 V

• Integrated backup fuse

  • Да

• Voltage protection level L-N

  • 1 kV

• Nominal discharge surge current (8/20)

  • 10 kA

• Category type 2

  • Да

• With remote signalling contact

  • Не

• Max. conductor cross section solid (solid, stranded)

  • 16 mm²

• Max. conductor cross section flexible (fine-strand)

  • 16 mm²

• Voltage protection level

  • 1.2 kV
