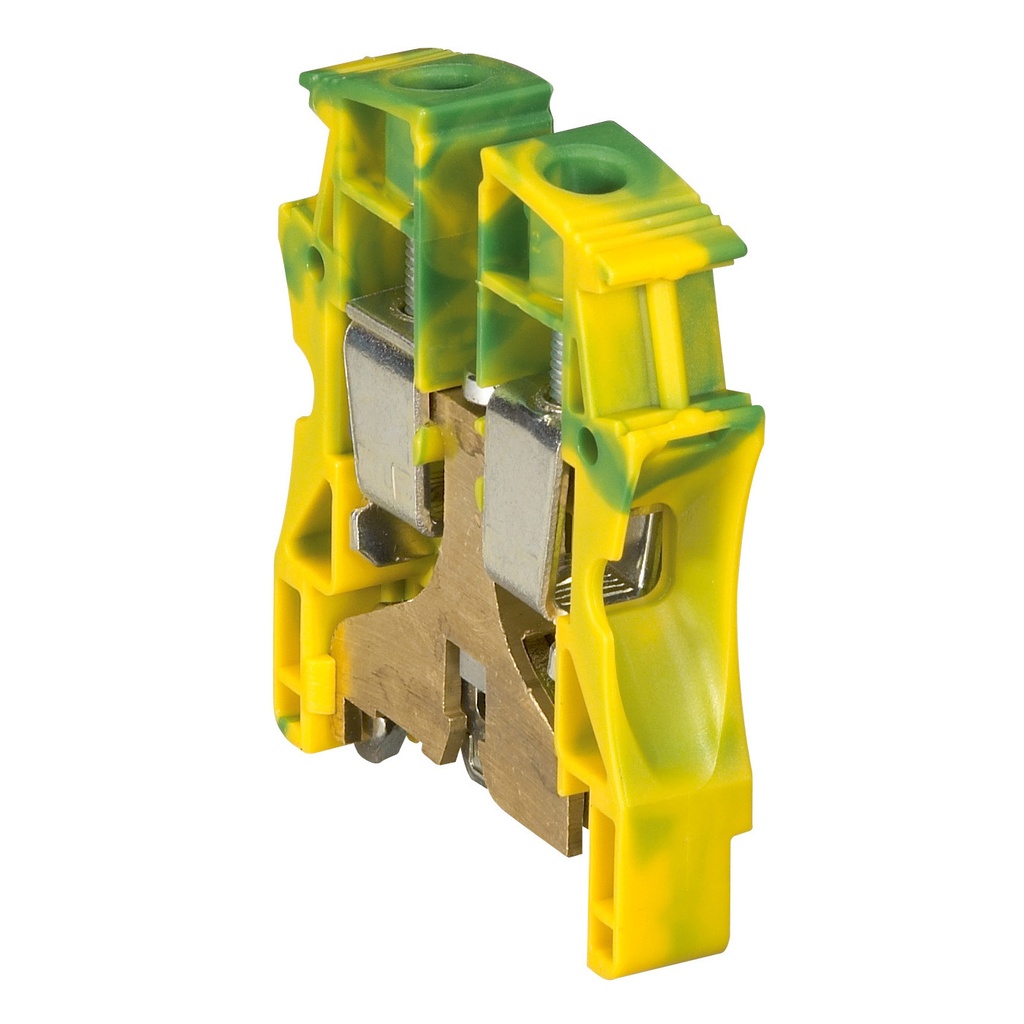

Редова клема ЖЪЛТО/ЗЕЛЕНА 16мм2 винтова със заземителна връзка към основата съсерия Viking 3 Legrand

---

• Вид продукт

  •

• Connectable conductor cross section solid-core

  • 1.5 … 25 mm²

• Mounting method

  • DIN rail (top hat rail) 35 mm

• Connectable conductor cross section multi-wired

  • 4 … 16 mm²

• Цвят

  • Green/yellow

• Rated voltage

  • 800 V

• Width

  • 12 mm

• Depth

  • 54.5 mm

• Height

  • 63 mm

• Operating temperature

  • -5 … 40 °C

• Inflammability class of insulation material according to UL 94

  • V2

• Number of clamp positions per level

  • 2

• Internally connected stages

  • Не

• Connectable conductor cross section fine-strand with cable end sleeve

  • 4 … 16 mm²

• Material insulation body

  • Thermoplastic

• Connectable conductor cross section fine-strand without cable end sleeve

  • 1.5 … 25 mm²

• Explosion-tested version 'Ex e'

  • Да

• Rated current In

  • 76 A

• Closing plate required

  • Да

• Type of electrical connection 1

  • Screw connection

• Number of levels

  • 1

• Type of electrical connection 2

  • Screw connection
