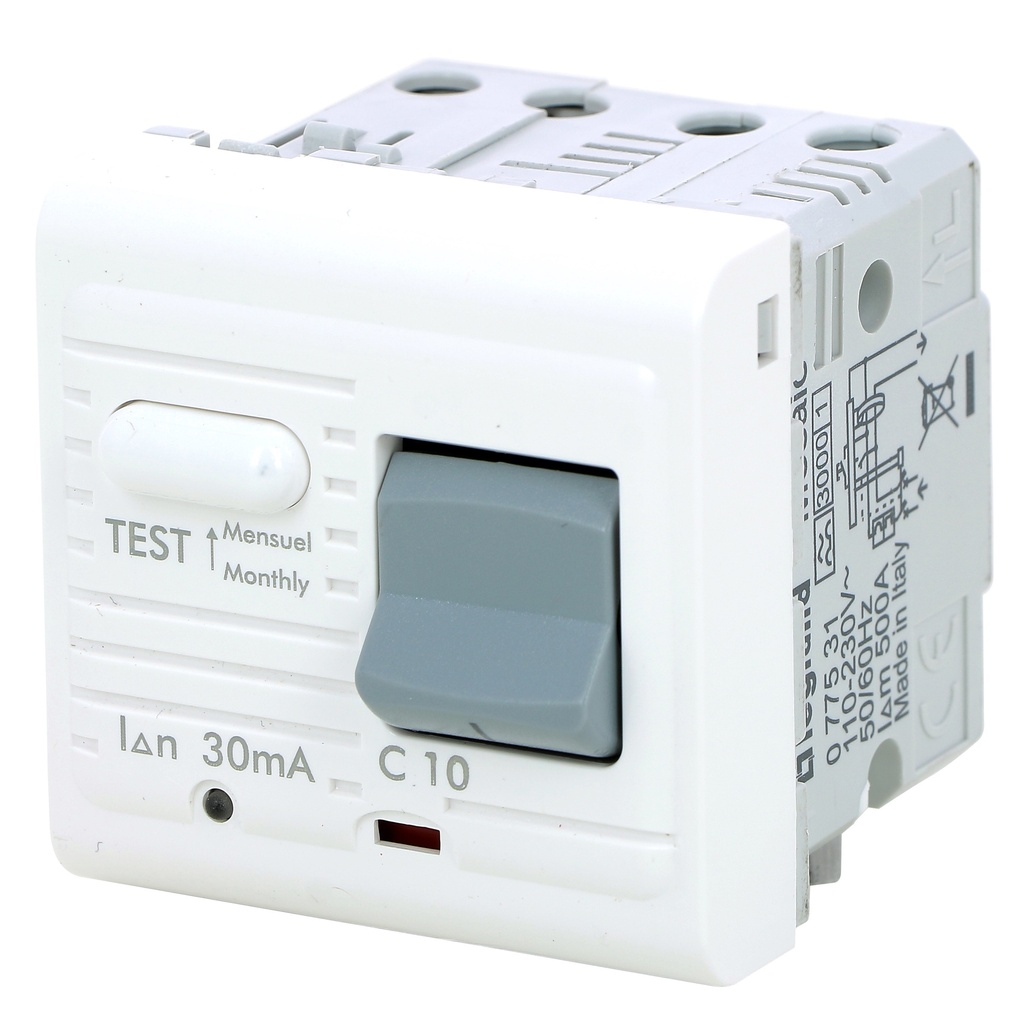

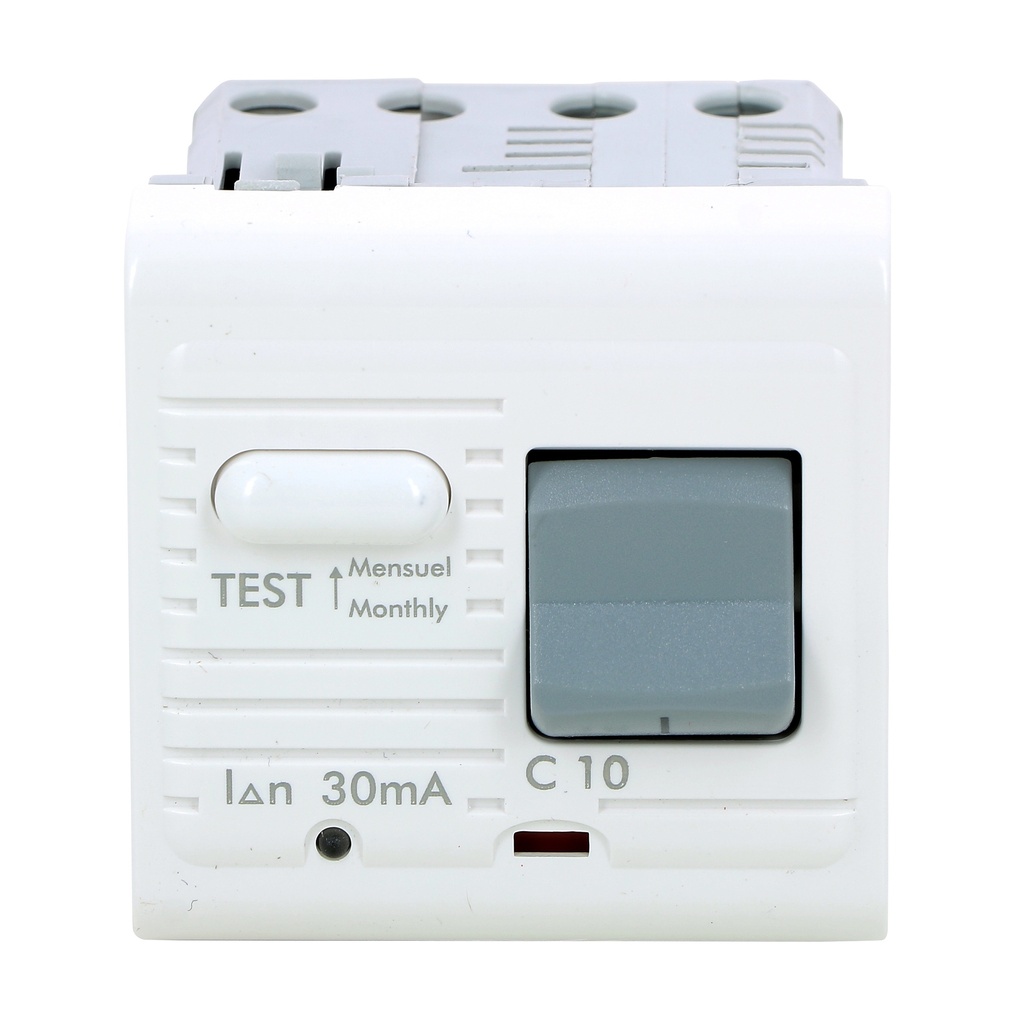

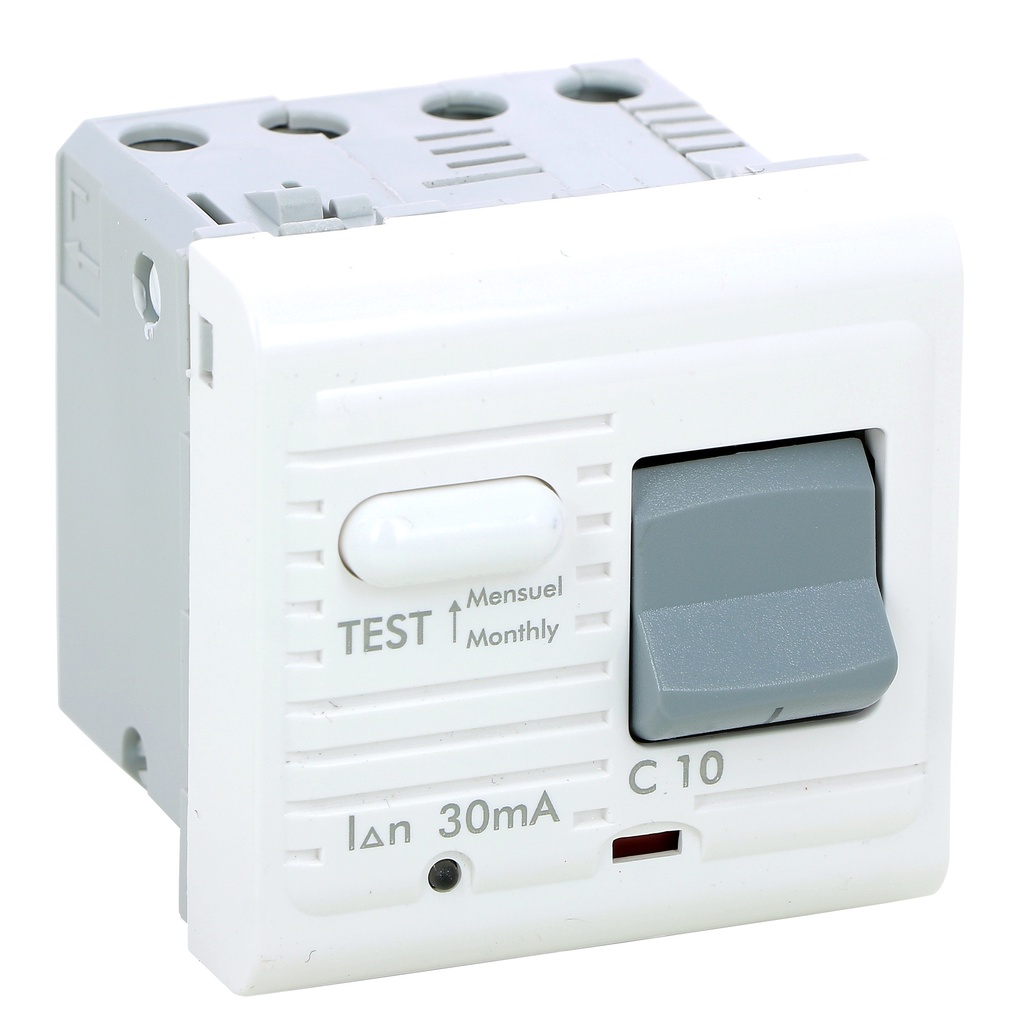

ДТЗ комбинирана 1P+N 10A крива C 30mA тип AC 3kA 2 модула Mosaic Legrand

---

• Connectable conductor cross section solid-core

  • 2.5 … 2.5 mm²

• Frequency

  • 50 Hz

• Ambient temperature during operating

  • -5 … 40 °C

• Ниво на защита IP

  • IP21

• Leakage current type

  • Other

• Voltage type

  • AC

• Mounting method

  • Built-in

• Rated fault current

  • 0.03 A

• Built-in depth

  • 40 mm

• Width in number of modular spacings

  • 45

• Rated current

  • 10 A

• Rated voltage

  • 230 V

• Concurrently switching neutral conductor

  • Да

• Number of protected poles

  • 1

• Number of poles (total)

  • 2

• Release characteristic

  • C

• Anti-nuisance tripping version

  • Да

• Rated short-circuit breaking capacity according to IEC 60947-2

  • 3 kA

• Rated short-circuit breaking capacity according to EN 61009

  • 3 kA

• Rated short-circuit breaking capacity Icn according to EN 61009-1

  • 3 kA
