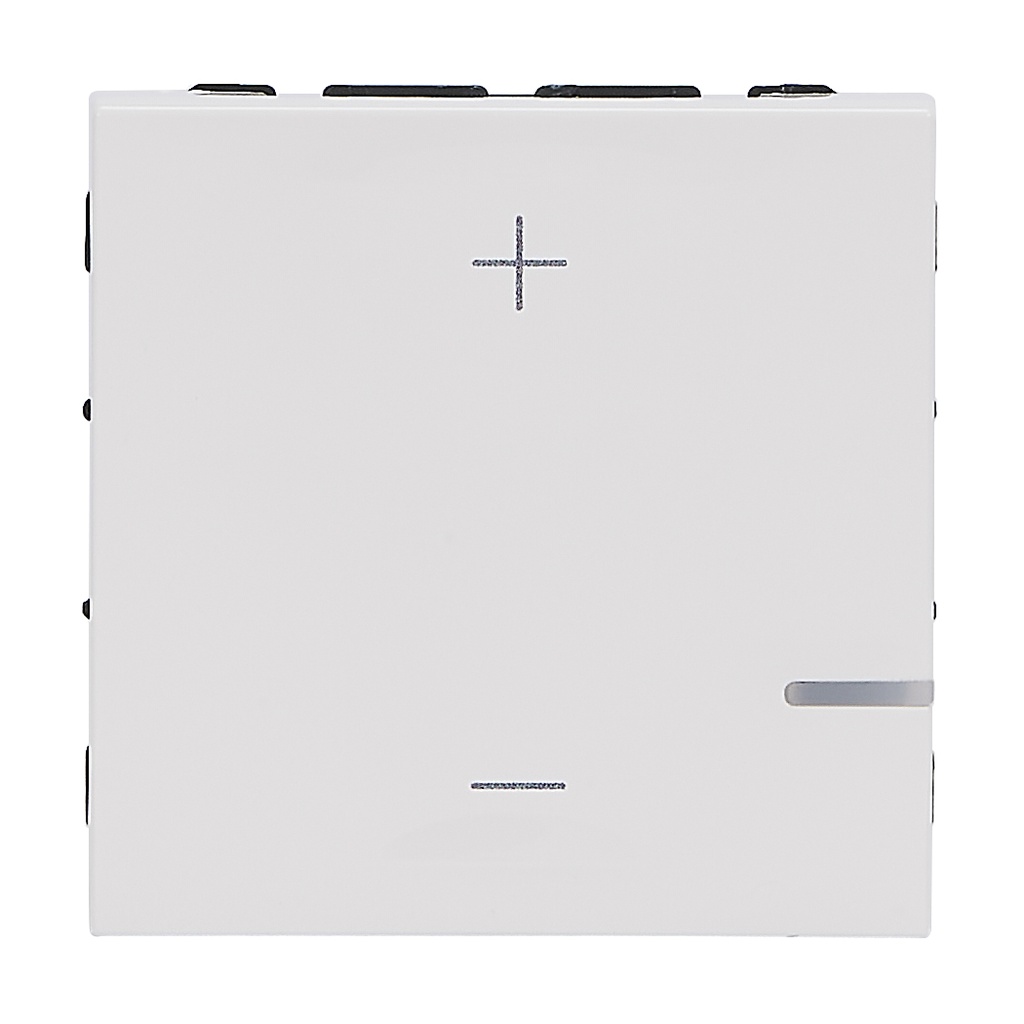

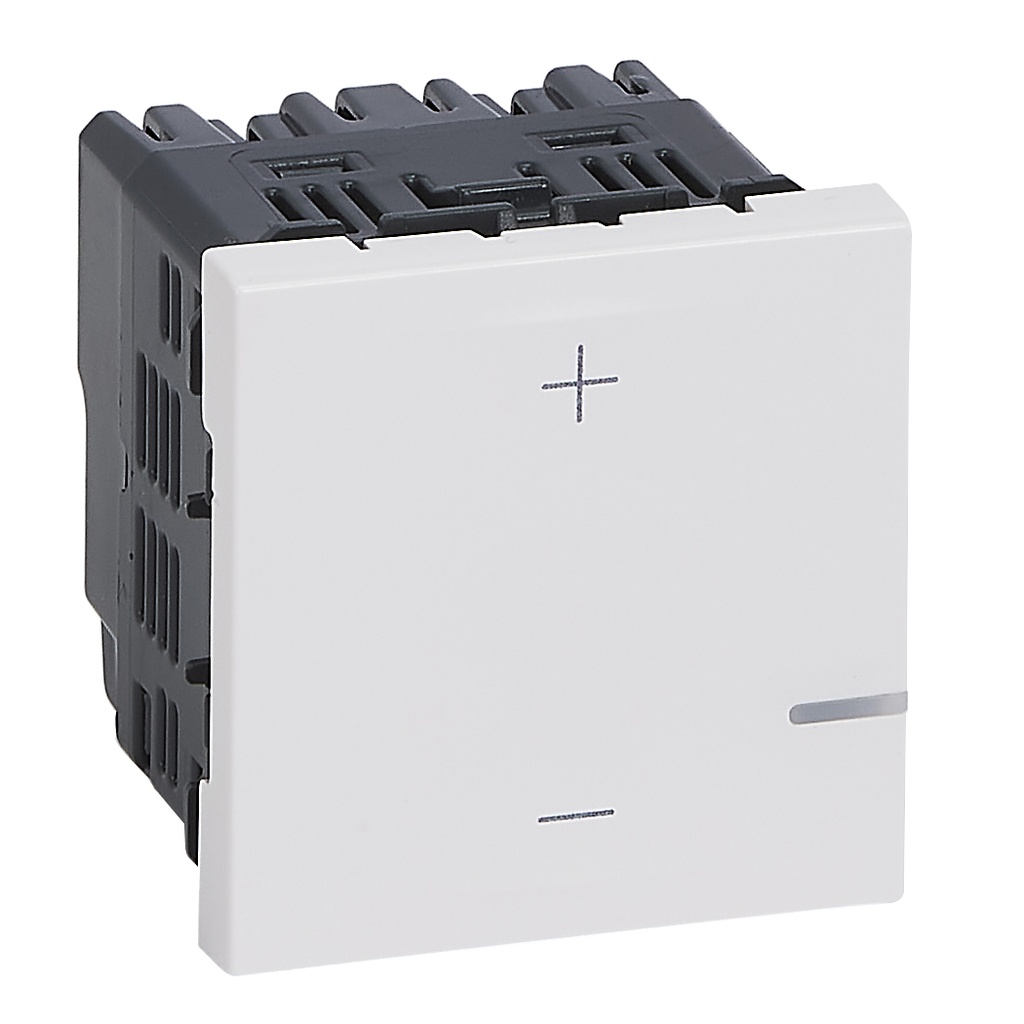

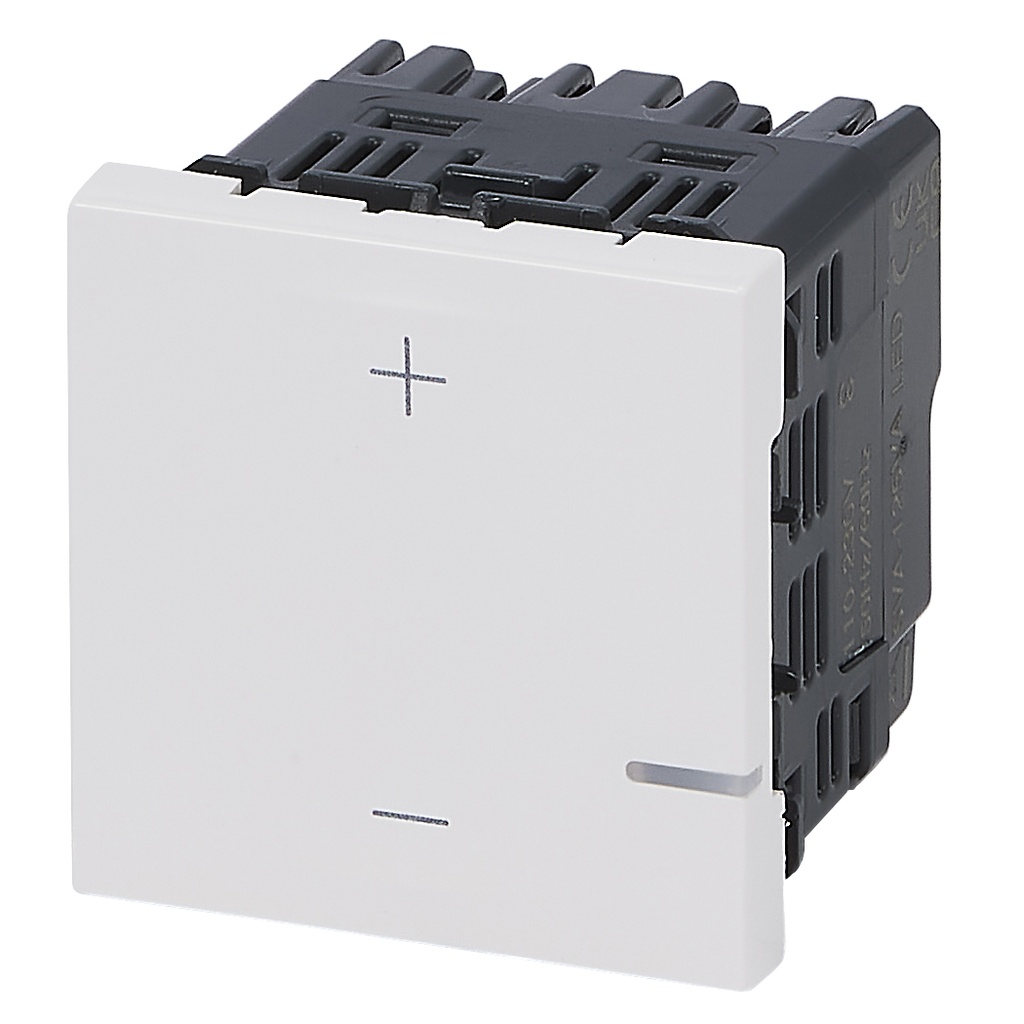

Димер бутонен R=3-400W L=3-400VA LED=3-125VA цвят бял Mosaic Legrand
Модел: LG-078407A
| Mounting method | Flush-mounted |
| RAL-number (similar) | 9003 |
| Device depth | 45 mm |
| Device width | 45 mm |
| Device height | 45 mm |
| Цвят | White |
| Frequency | 50 … 60 Hz |
| Material | Plastic |
| Halogen free | Да |
| Surface protection | Untreated |
| Type of fastening | Click in mounting |
| Surface finishing | Glossy |
| Material quality | Thermoplastic |
| Transparent | Не |
| Impact strength | IK04 |
| Suitable for degree of protection (IP) | IP20 |
| Брой модули | 2 |
| Min. depth of built-in installation box | 40 mm |
| Assembly arrangement | Modular device for domestic switching devices |
| Connection type | Screwed terminal |
| Core cross section | 1.5 … 2.5 mm² |
| Control voltage | 110 … 230 V |
| Compatible with Apple HomeKit | Не |
| Compatible with Amazon Alexa | Не |
| Compatible with Google Assistant | Не |
| Applicable with infrared button | Не |
| Applicable with presence indicator | Не |
| Type of load | Universal and LED Retrofit |
| Applicable with movement sensor | Не |
| Applicable with transmission button | Не |
| Light value memory | Да |
| Serial dimmer | Не |
| Nominal voltage | 110 … 230 V |
| Nominal power resistive load | 3 … 125 W |
| App control via Bluetooth | Не |
| IFTTT support available | Не |
| Applicable with time switch/timer | Не |
| Substation input | Да |
| Applicable with button | Да |
| Method of operation | Push button |
| Dimming phase cut-on (leading edge) | Да |
| Dimming phase cut-off (trailing edge) | Да |
| Min. brightness controllable | Да |
| Nominal power inductive load | 3 … 125 VA |
| Nominal power capacitive load | 3 … 125 VA |
| Max. switching power LED | 125 W |
| Power consumption | 0.3 W |
