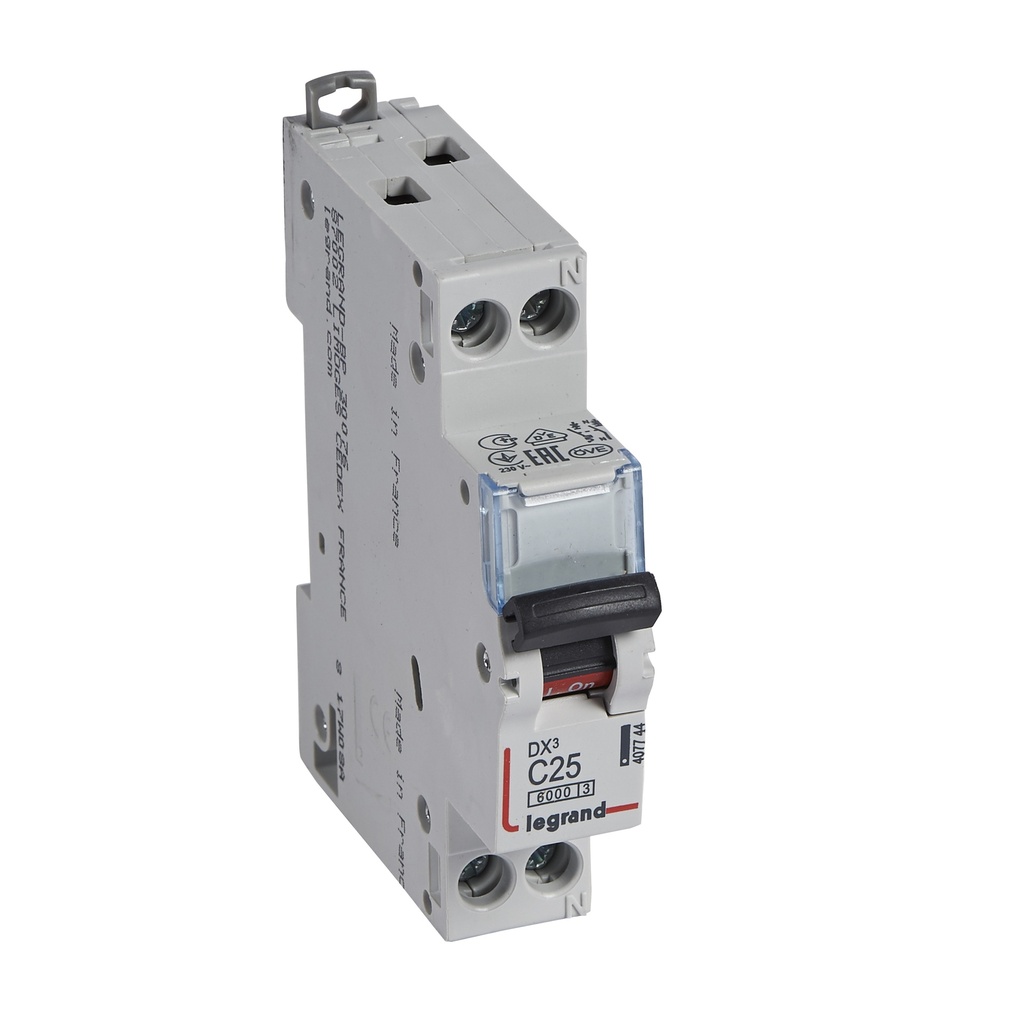

Автоматичен прекъсвач DX3 1P+N 25A крива С 6kA Legrand

---

• Марка

  •

• Марка

  •

• Подразделение

  •

• Подразделение

  •

• Вид продукт

  •

• Explosion-proof

  • Не

• Connectable conductor cross section solid-core

  • 0.75 … 16 mm²

• Ambient temperature during operating

  • -25 … 70 °C

• Ниво на защита IP

  • IP20

• Voltage type

  • AC

• Additional equipment possible

  • Да

• Rated impulse withstand voltage Uimp

  • 4 kV

• Built-in depth

  • 44 mm

• Pollution degree

  • 2

• Width in number of modular spacings

  • 1

• Rated insulation voltage Ui

  • 250 V

• Connectable conductor cross section multi-wired

  • 0.75 … 10 mm²

• Rated current

  • 25 A

• Rated voltage

  • 230 V

• Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

  • 6 kA

• Concurrently switching neutral conductor

  • Да

• Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

  • 10 kA

• Number of protected poles

  • 1

• Frequency

  • 50 … 60 Hz

• Number of poles (total)

  • 2

• Current limiting class

  • 3

• Flush-mounted installation

  • Да

• Release characteristic

  • C
