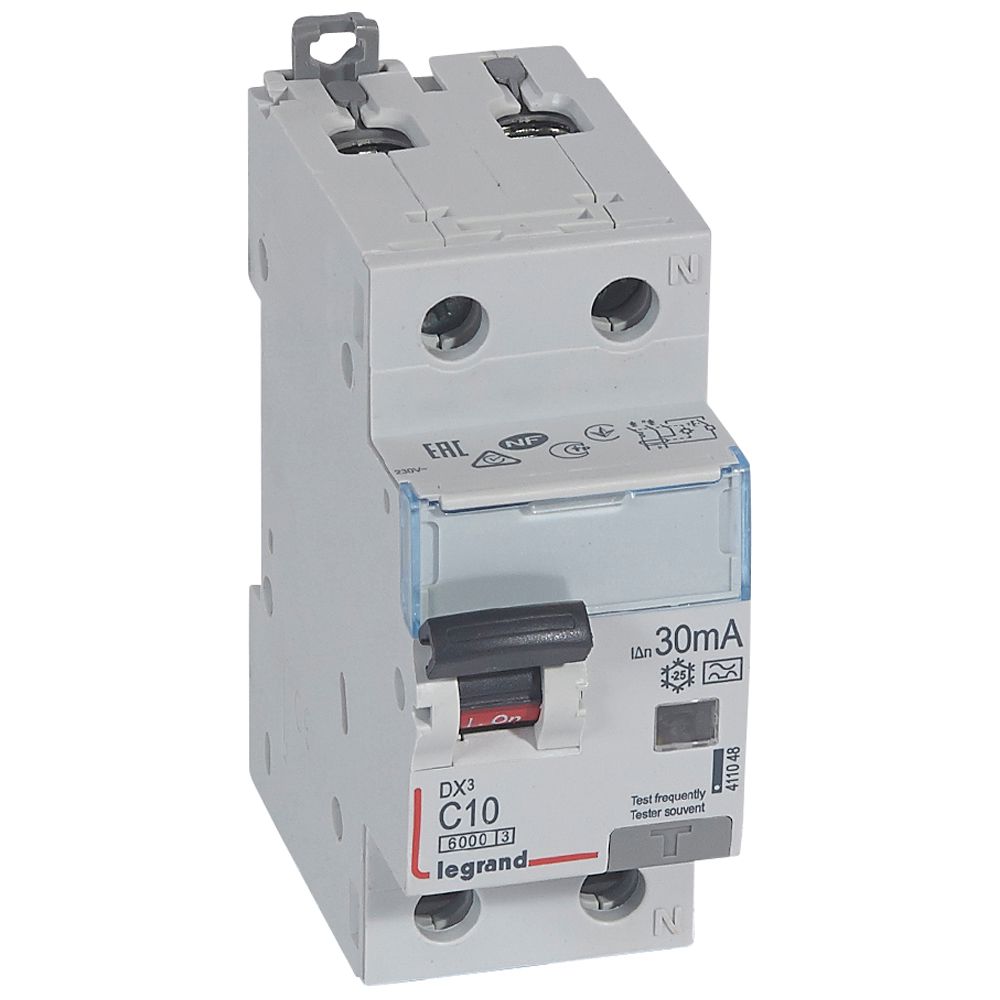

ДТЗ комбинирана DX3 1P+N 10A крива C 30mA тип A 10kA 2 модула Legrand

---

• Вид продукт

  •

• Вид продукт

  •

• Connectable conductor cross section solid-core

  • 0.75 … 16 mm²

• Frequency

  • 50 Hz

• Ниво на защита IP

  • IP20

• Leakage current type

  • A

• Voltage type

  • AC

• Surge current capacity

  • 0.25 kA

• Rated fault current

  • 0.03 A

• Built-in depth

  • 44 mm

• Pollution degree

  • 2

• Width in number of modular spacings

  • 2

• With interlocking device

  • Да

• Connectable conductor cross section multi-wired

  • 0.75 … 10 mm²

• Rated current

  • 10 A

• Rated voltage

  • 230 V

• Concurrently switching neutral conductor

  • Да

• Number of protected poles

  • 1

• Number of poles (total)

  • 2

• Current limiting class

  • 3

• Release characteristic

  • C

• Anti-nuisance tripping version

  • Не

• Rated short-circuit breaking capacity according to IEC 60947-2

  • 10 kA

• Rated short-circuit breaking capacity according to EN 61009

  • 6 kA

• Rated short-circuit breaking capacity Icn according to EN 61009-1

  • 6 kA
