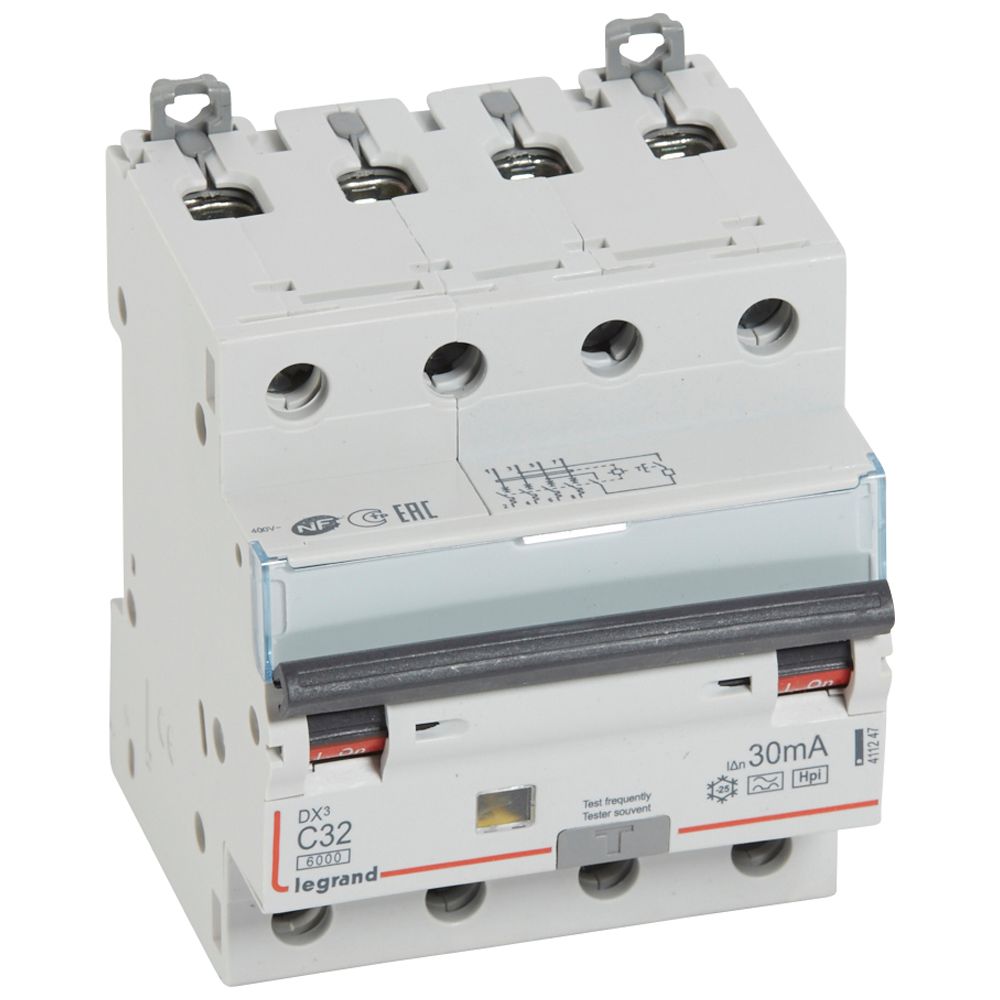

ДТЗ комбинирана DX3 4P 32A крива C 30mA тип F 6kA 4 модула Legrand

---

• Вид продукт

  •

• Вид продукт

  •

• Frequency

  • 50 Hz

• Ниво на защита IP

  • IP20

• Leakage current type

  • F

• Voltage type

  • AC

• Surge current capacity

  • 3 kA

• Rated fault current

  • 0.03 A

• Built-in depth

  • 44 mm

• Pollution degree

  • 2

• Width in number of modular spacings

  • 4

• With interlocking device

  • Да

• Rated current

  • 32 A

• Rated voltage

  • 400 V

• Concurrently switching neutral conductor

  • Да

• Number of protected poles

  • 4

• Number of poles (total)

  • 4

• Current limiting class

  • 1

• Release characteristic

  • C

• Anti-nuisance tripping version

  • Да

• Rated short-circuit breaking capacity according to IEC 60947-2

  • 6 kA

• Rated short-circuit breaking capacity according to EN 61009

  • 6 kA

• Rated short-circuit breaking capacity Icn according to EN 61009-1

  • 6 kA
