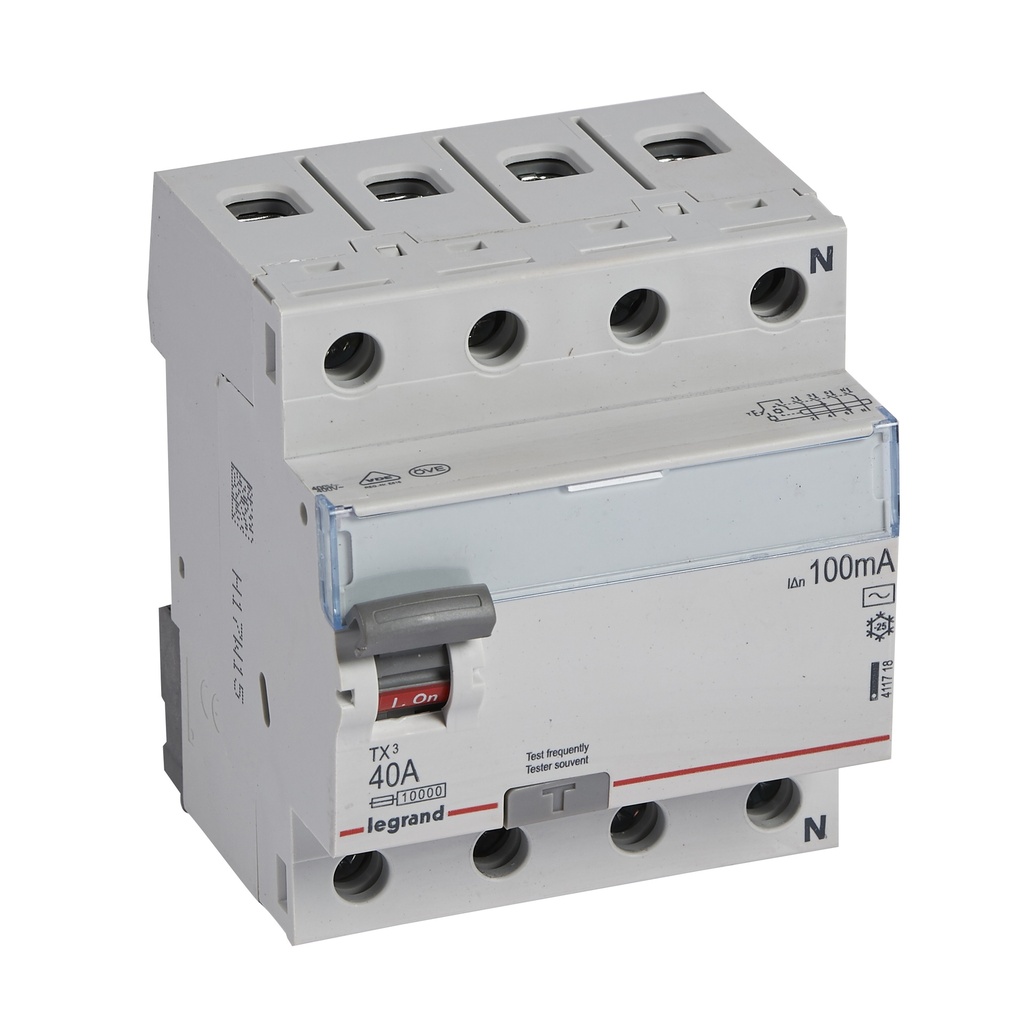

ДТЗ 4P 40A 100mА серия TX3 ID тип AC Legrand

---

• Марка

  •

• Марка

  •

• Подразделение

  •

• Подразделение

  •

• Вид продукт

  •

• Explosion-proof

  • Не

• Connectable conductor cross section solid-core

  • 0.75 … 50 mm²

• Frequency

  • 50 Hz

• Selective protection

  • Не

• Short-circuit breaking capacity (Icw)

  • 10 kA

• Ambient temperature during operating

  • -25 … 60 °C

• Ниво на защита IP

  • IP20

• Leakage current type

  • AC

• Voltage type

  • AC

• Additional equipment possible

  • Да

• Mounting method

  • DIN rail

• Surge current capacity

  • 0.25 kA

• Number of poles

  • 4

• Short-time delayed tripping

  • Не

• Rated fault current

  • 0.1 A

• Rated impulse withstand voltage Uimp

  • 4 kV

• Built-in depth

  • 44 mm

• RAL-number (similar)

  • 7035

• Pollution degree

  • 2

• Power loss

  • - W

• Width in number of modular spacings

  • 4

• Rated insulation voltage Ui

  • 500 V

• Device depth

  • - mm

• With interlocking device

  • Да

• Connectable conductor cross section multi-wired

  • 0.75 … 35 mm²

• Device width

  • - mm

• Device height

  • - mm

• Rated current

  • 40 A

• Цвят

  • Grey

• Rated voltage

  • 400 V

• Type of personal protection PRCD

  • -
