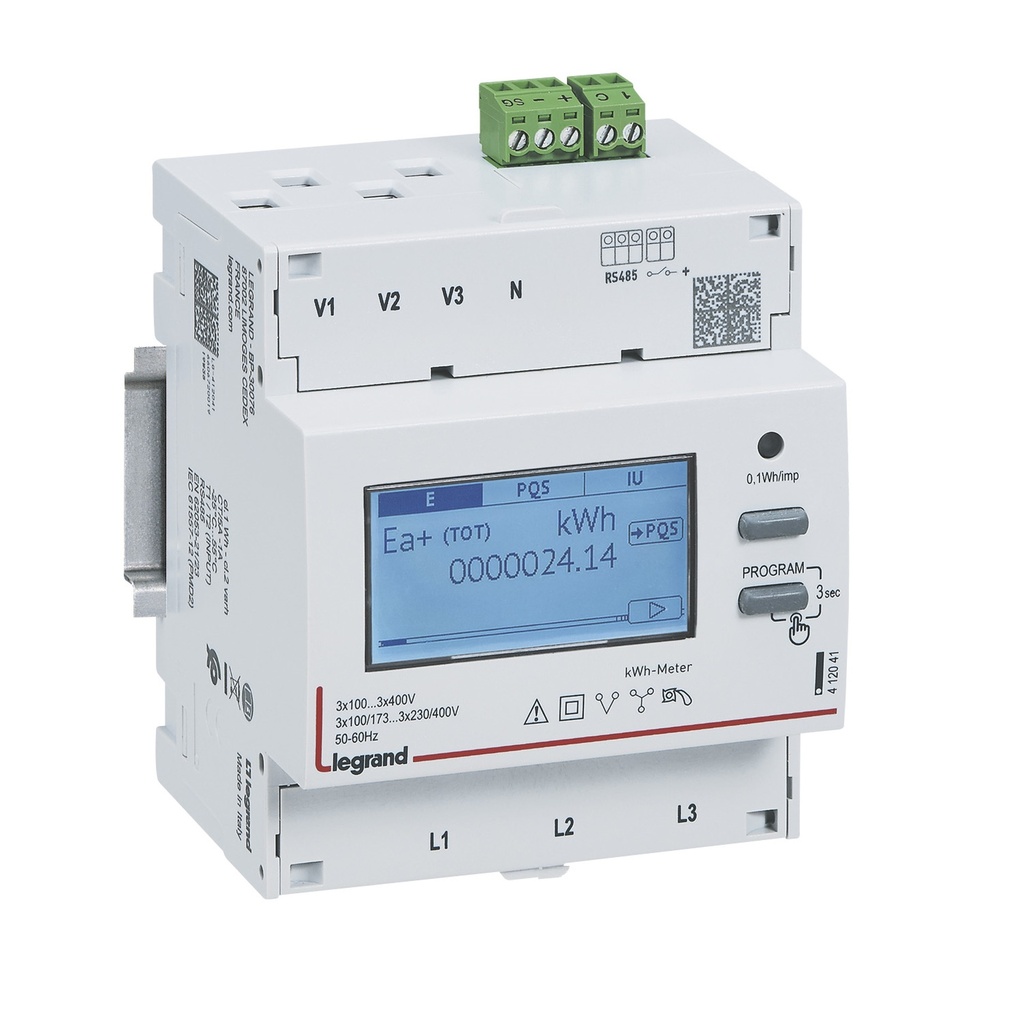

Трифазен електромер за ИНДИРЕКТНО мерене на ел. енергия EMDX3, Modbus, 2 тарифи, за DIN монтаж 4 мод, MID Legrand

---

• Measurement type load profile

  • Не

• Number of positions total (counter)

  • 9

• With lock code

  • Да

• Energy type

  • Effective power and reactive power

• Pole type

  • Three conductor/four conductor

• Tariff type

  • Two-tariff

• Approval

  • Measuring Instruments Directive

• Pulse output

  • None

• Max. current (Imax)

  • 6 A

• Escapement mechanism

  • Да

• Calibrated

  • Да

• Type of meter

  • Electronic

• Nominal current (In)

  • 5 A

• Nominal voltage (Un) N-L

  • 197 … 265 V

• Type of indication

  • Digital

• Accuracy class

  • B

• Tariff control

  • External

• Nominal voltage (Un) L-L

  • 340 … 460 V

• Ниво на защита IP

  • IP54

• Mounting method

  • DRA (DIN-rail adaptor)

• Width in number of modular spacings

  • 4

• Frequency

  • 49 … 61 Hz

• Model

  • Measurement transformer

• Width

  • 71.2 mm

• Depth

  • 66 mm

• Height

  • 92.4 mm

• Type of interface

  • RS-485

• Suitable for

  • Purchase/supply
