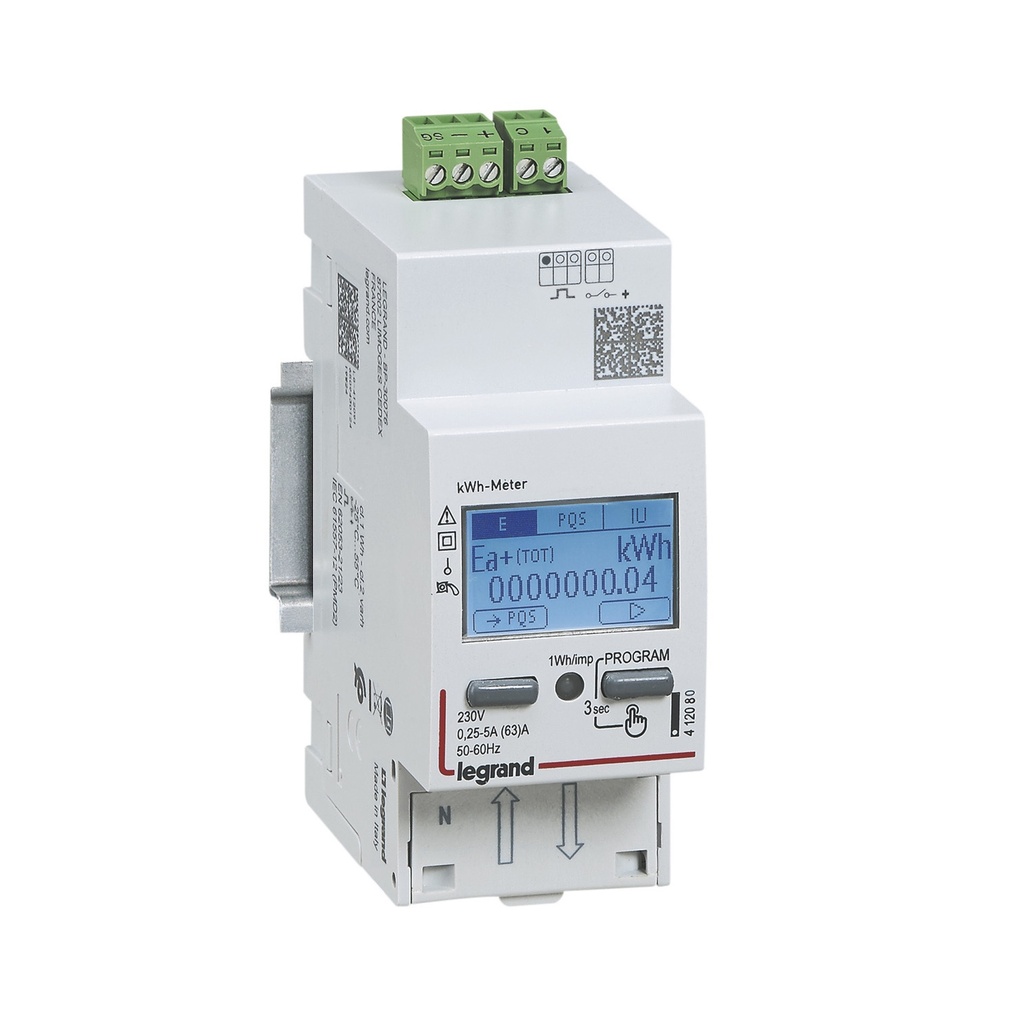

Монофазен мерител за ДИРЕКТНО мерене на ел. енергия EMDX3, импулсен изход, за DIN монтаж 2 мод, 63A, Legrand

---

• Measurement type load profile

  • Не

• Number of positions total (counter)

  • 9

• With lock code

  • Да

• Energy type

  • Effective power and reactive power

• Pole type

  • Single phase

• Tariff type

  • Two-tariff

• Approval

  • Domestic

• Pulse output

  • Optical

• Max. current (Imax)

  • 63 A

• Escapement mechanism

  • Да

• Calibrated

  • Да

• Type of meter

  • Electronic

• Nominal current (In)

  • 10 A

• Nominal voltage (Un) N-L

  • 197 … 265 V

• Type of indication

  • Digital

• Pulse rate

  • 0.001 … 10 Imp/kWh (kvarh)

• Accuracy class

  • B

• Pulse type

  • S0

• Tariff control

  • External

• Ниво на защита IP

  • IP54

• Mounting method

  • DRA (DIN-rail adaptor)

• Width in number of modular spacings

  • 2

• Frequency

  • 47 … 63 Hz

• Model

  • Direct measurement

• Width

  • 35.8 mm

• Depth

  • 66 mm

• Height

  • 92.4 mm

• Type of interface

  • None

• Suitable for

  • Purchase/supply
