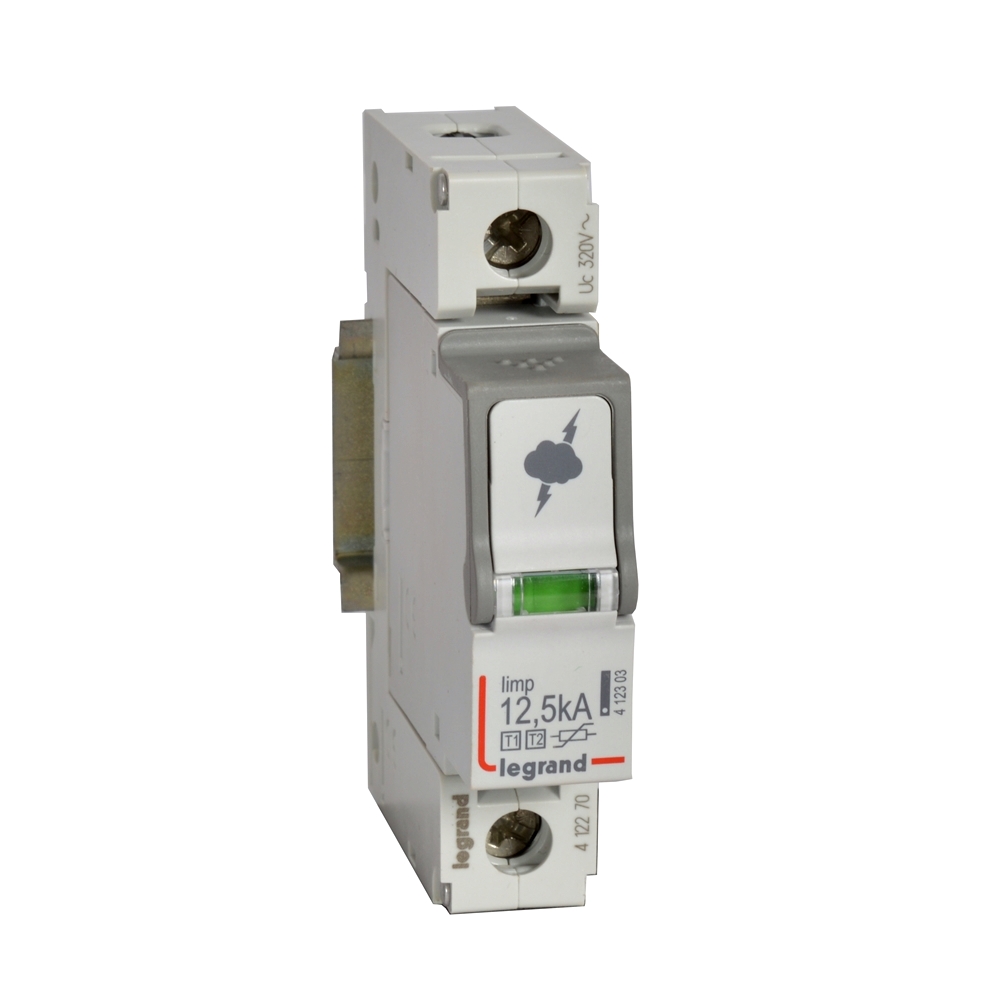

Катоден отводител тип 1+2 SPD 12.5kA 320V 1P с индикация Legrand

---

• Марка

  •

• Подразделение

  •

• Вид продукт

  •

• Ниво на защита IP

  • IP20

• Mounting method

  • DIN rail (top hat rail) 35 mm

• System configuration TN-C-S

  • Да

• Nominal voltage AC

  • 230 V

• System configuration TN-S

  • Не

• Construction size

  • 1 modular spacing

• System configuration other

  • Да

• System configuration TT

  • Не

• Signalling at the device

  • Optical

• Number of conductors (without earthing)

  • 1

• System configuration IT

  • Не

• System configuration TN-C

  • Да

• System configuration TN

  • Да

• Max. continuous voltage AC

  • 320 V

• Integrated backup fuse

  • Не

• Nominal discharge surge current (8/20)

  • 25 kA

• Category type 2

  • Да

• With remote signalling contact

  • Не

• Max. conductor cross section solid (solid, stranded)

  • 35 mm²

• Max. conductor cross section flexible (fine-strand)

  • 25 mm²

• Voltage protection level

  • 1.9 kV
