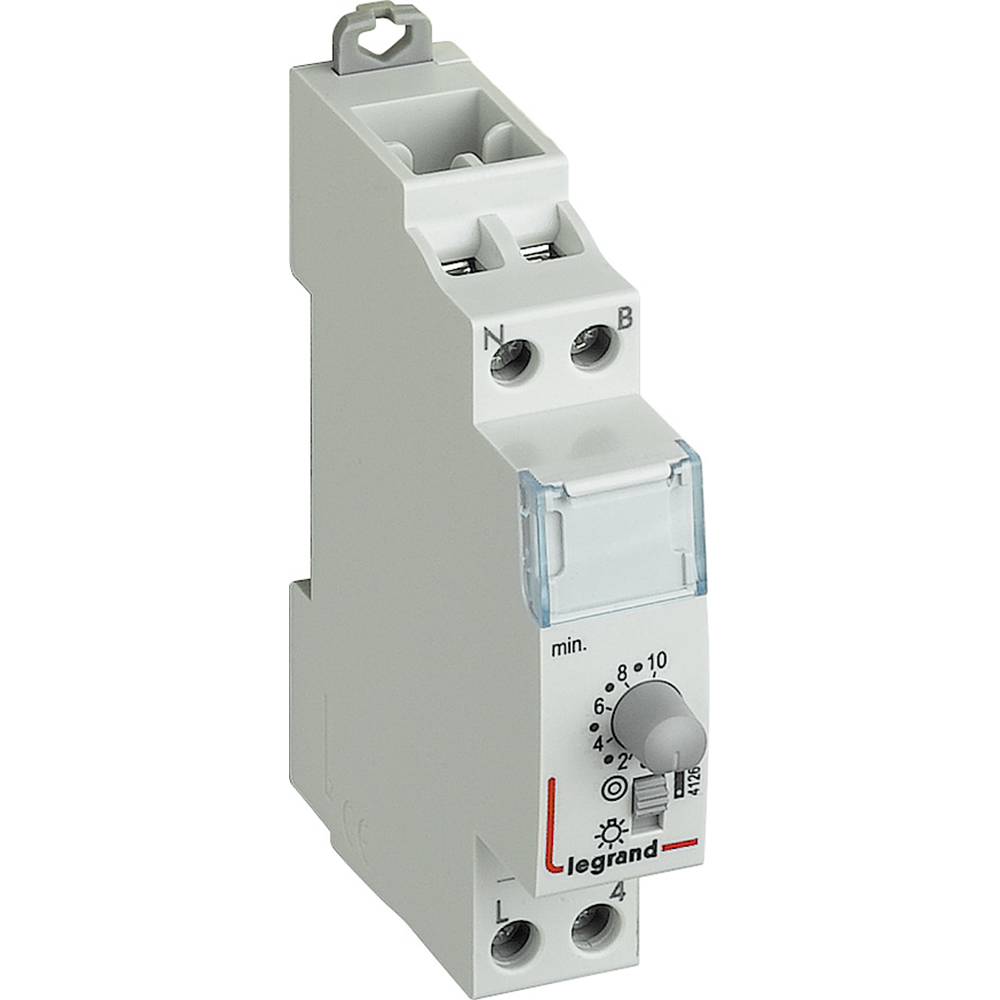

Стълбищен автомат, 1x 0.5s-10m, 1c/o 16A, 230Vac 1 модул Legrand

---

• Марка

  •

• Подразделение

  •

• Mounting method

  • DIN rail

• Built-in depth

  • 70 mm

• Width in number of modular spacings

  • 1

• Number of contacts as normally open contact

  • 1

• Wiring system

  • 3 and 4 wire configuration

• Function

  • Electronic

• Type of control voltage 1

  • AC

• Control voltage 1

  • 230 … 230 V

• Frequency control voltage 1

  • 50 … 60 Hz

• Voltage type (supply voltage)

  • AC

• Max. switching current (cos phi = 0.6)

  • 13 A

• Supply voltage

  • 250 … 250 V

• Pre-warning of switching-off

  • None

• Repetitive

  • Repetitive

• Release-delay

  • 0.5 … 10 min

• Max. load fluorescent lamp

  • 1000 VA

• Max. incandescent lamp load

  • 2000 W

• Max. load fluorescent lamp (parallel compensated)

  • 120 VA

• Max. load fluorescent lamp (Duo circuit)

  • 1000 VA

• Current surge function selectable

  • Не

• Rated switch current

  • 16 A

• Push button glow-lamp current

  • 50 mA
