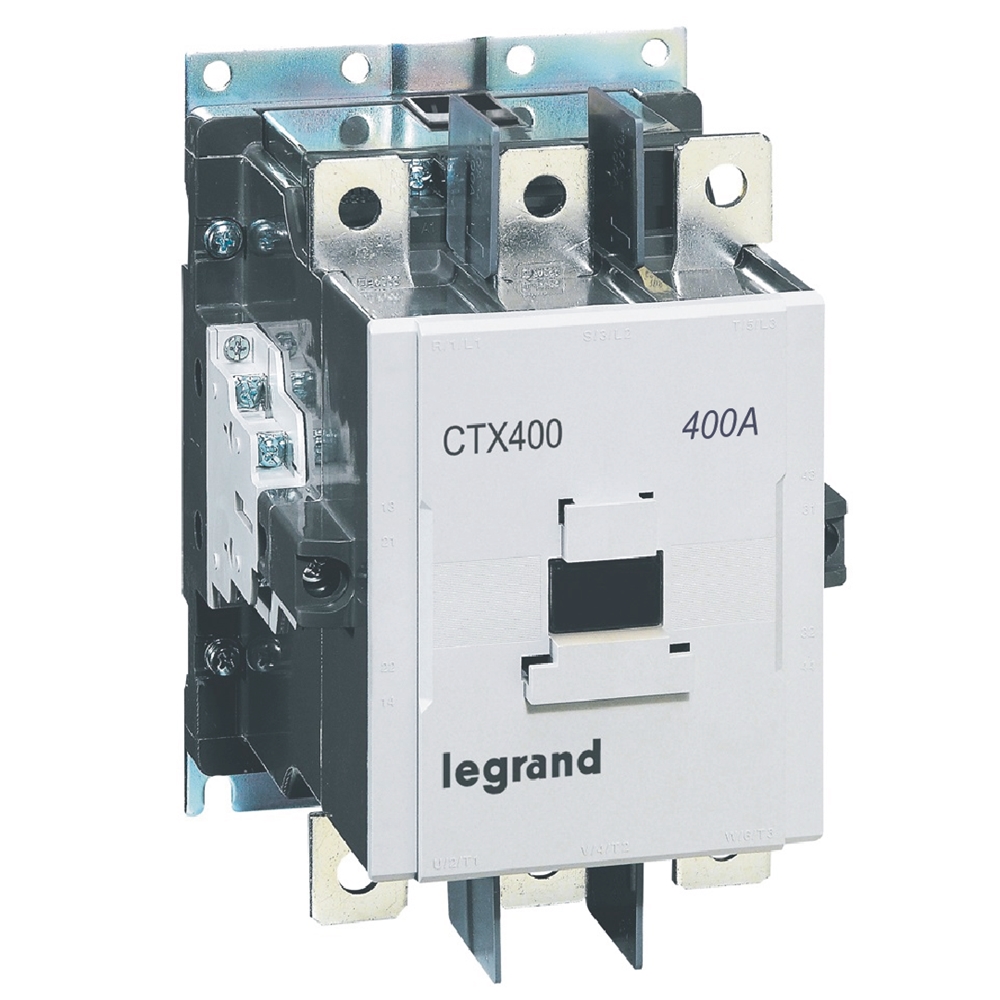

Контактор CTX3-400 3P 200kW (400A AC-3) 2NO-2NC 230V 50/60Hz Legrand

---

• Вид продукт

  •

• Вид продукт

  •

• Rated operation current Ie at AC-1, 400 V

  • 450 A

• Number of normally open contacts as main contact

  • 3

• Number of auxiliary contacts as normally open contact

  • 2

• Number of normally closed contacts as main contact

  • 0

• Rated operation power at AC-3, 400 V

  • 200 kW

• Number of auxiliary contacts as normally closed contact

  • 2

• Rated operation current Ie at AC-4, 400 V

  • 300 A

• Voltage type for actuating

  • AC/DC

• Rated operation power at AC-4, 400 V

  • 150 kW

• Rated operation current Ie at AC-3, 400 V

  • 400 A

• Suitable for distribution board

  • Не

• Rated control supply voltage AC 50 Hz

  • 85 … 264 V

• Type of electrical connection of main circuit

  • Screw connection

• Rated control supply voltage AC 60 Hz

  • 85 … 264 V

• Rated control supply voltage DC

  • 85 … 242 V
