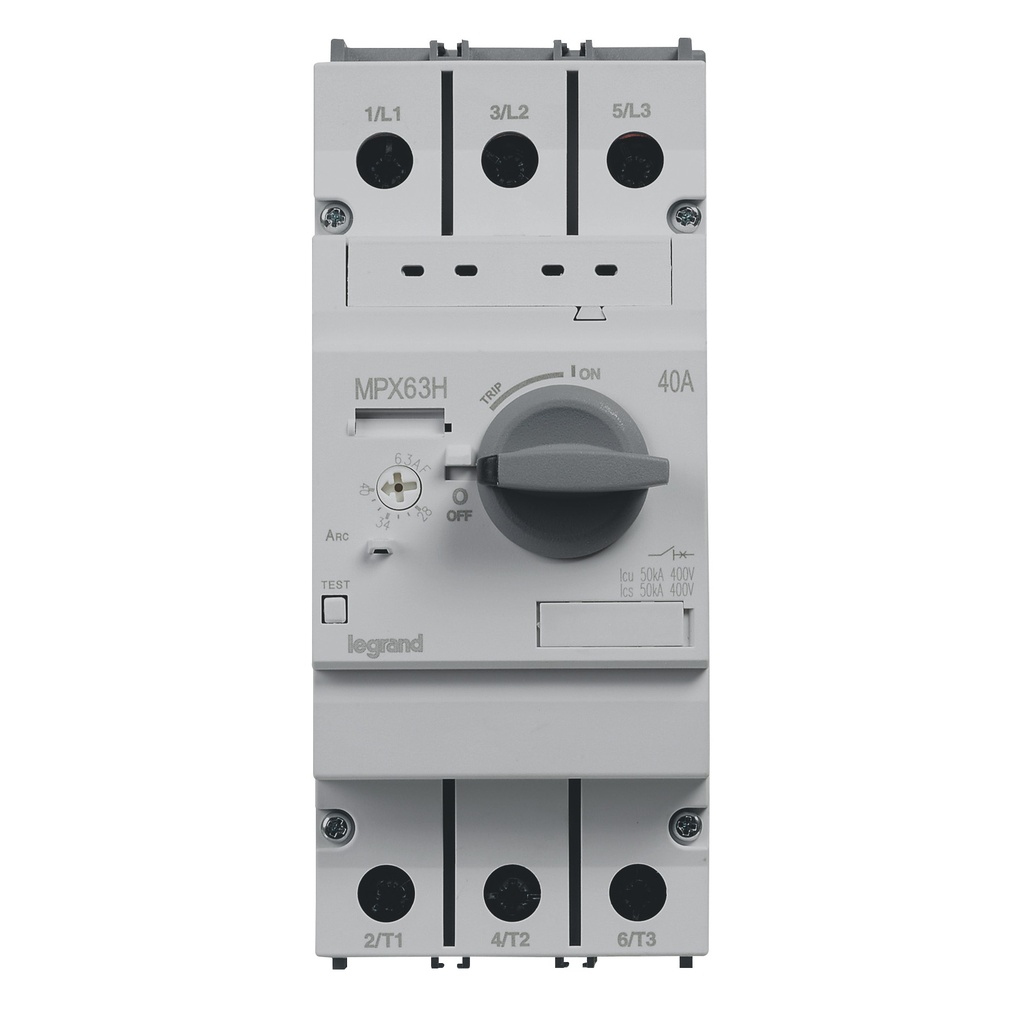

Моторна защита MPX3-63H 18.5kW TM 28-40A 50kA Legrand

---

• Марка

  •

• Подразделение

  •

• Вид продукт

  •

• Ниво на защита IP

  • IP20

• Number of poles

  • 3

• Width

  • 55 mm

• Depth

  • 144.6 mm

• Height

  • 140 mm

• Rated operating voltage

  • 220 … 690 V

• Rated operation power at AC-3, 400 V

  • 18.5 kW

• Type of electrical connection of main circuit

  • Frame clamp

• Switch off technique

  • Thermomagnetic

• Type of control element

  • Turn button

• With thermal overload protection

  • Да

• Rated operation power at AC-3, 230 V

  • 7.5 kW

• With integrated auxiliary switch

  • Да

• Phase failure sensitive

  • Не

• Rated permanent current Iu

  • 40 A

• Rated short-circuit breaking capacity Icu at 400 V, AC

  • 50 kA

• Adjustment range undelayed short-circuit release

  • 520 … 520 A

• With integrated under voltage release

  • Да

• Device construction

  • Built-in device fixed built-in technique

• Overload release current setting

  • 28 … 40 A
