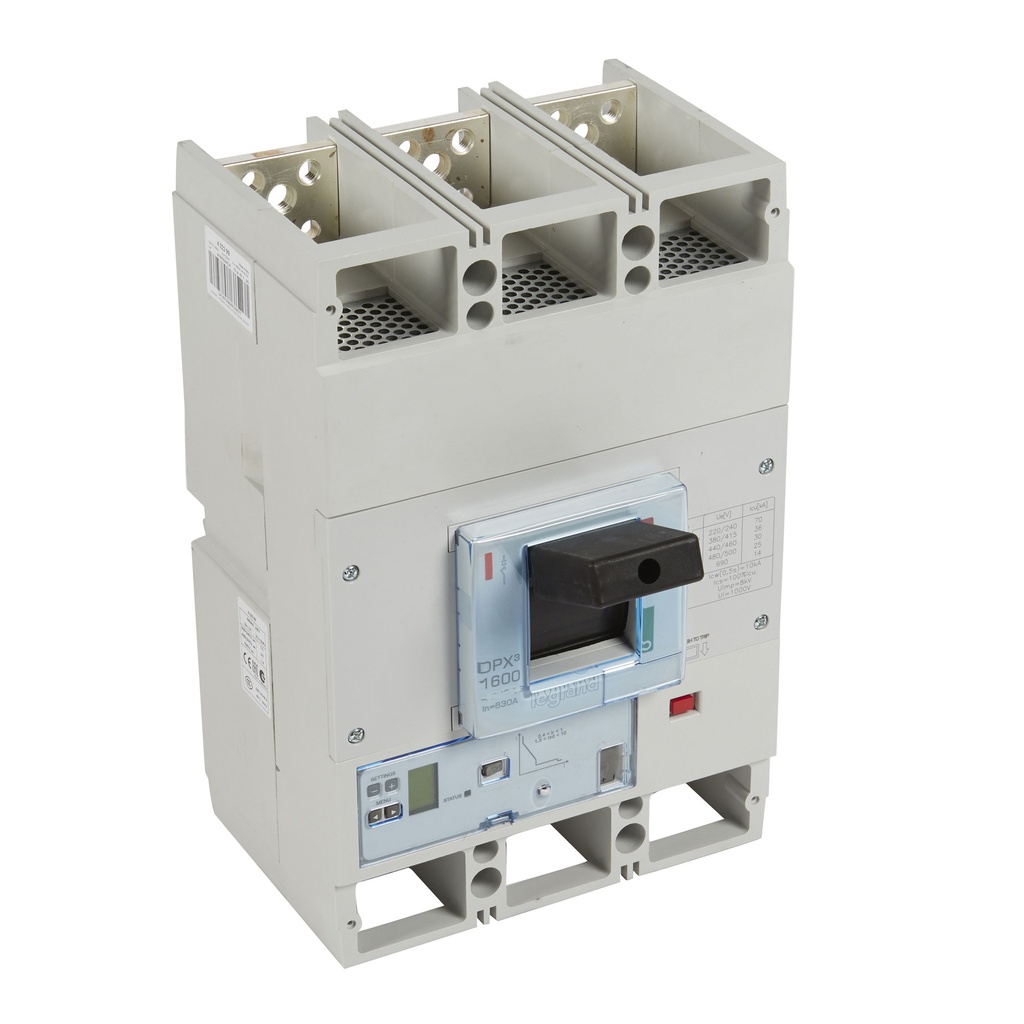

Автомат DPX3 1600 електронна защита S2 3P 1000A 36кA регулируем (In x 0.4...1) Legrand

---

• Вид продукт

  •

• Вид продукт

  •

• Ниво на защита IP

  • IP30

• Number of poles

  • 3

• Type of electrical connection of main circuit

  • Screw connection

• Type of control element

  • Wing knob

• Rated permanent current Iu

  • 1000 A

• Adjustment range undelayed short-circuit release

  • 15000 … 15000 A

• With integrated under voltage release

  • Да

• Device construction

  • Built-in device fixed built-in technique

• Overload release current setting

  • 400 … 1000 A

• Motor drive integrated

  • Не

• Motor drive optional

  • Да

• Number of auxiliary contacts as change-over contact

  • 3

• Integrated earth fault protection

  • Не

• Suitable for DIN rail (top hat rail) mounting

  • Не

• Adjustment range short-term delayed short-circuit release

  • 600 … 10000 A

• Rated short-circuit breaking capacity Icu at 400 V, 50 Hz

  • 36 kA

• With switched-off indicator

  • Да

• Position of connection for main current circuit

  • Front side

• Rated voltage

  • 220 … 690 V

• DIN rail (top hat rail) mounting optional

  • Не

• Complete device with protection unit

  • Да
