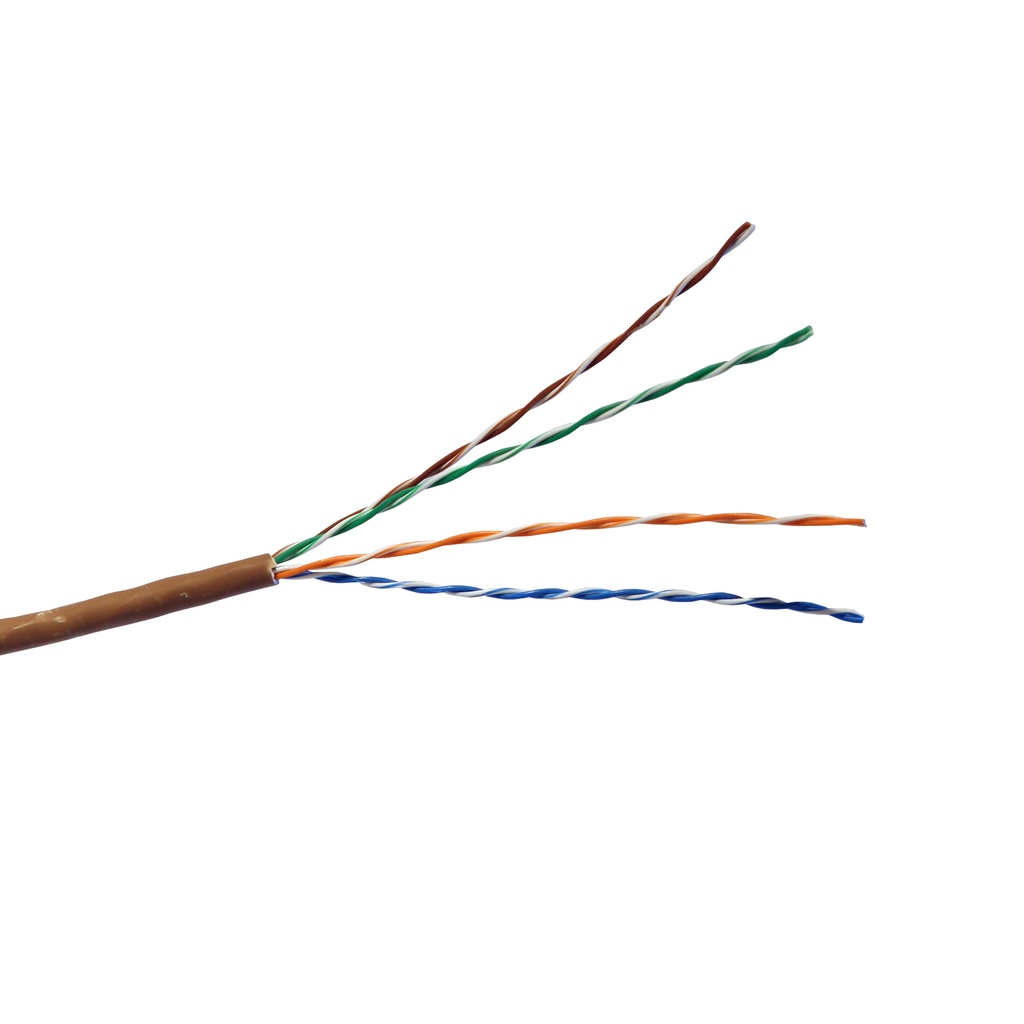

UTP (U/UTP) кабел 4x2xAWG25 Категория 5E

---

• Марка

  •

• Подразделение

  •

• Weight

  • 36 kg/km

• Colour outer sheath

  • Brown

• Low smoke according to EN IEC 61034-2

  • Да

• Number of cores

  • 8

• Core identification

  • Colour

• Material core insulation

  • Other

• Nominal cross section conductor

  • 0.18 mm²

• Conductor material

  • Copper

• Diameter conductor

  • 0.48 mm

• Outer diameter approximate

  • 5 mm

• Drain wire

  • Не

• Material outer sheath

  • Other

• Armouring/reinforcement

  • None

• Permitted cable outer temperature after assembling without vibration

  • -20 … 60 °C

• Permitted cable outer temperature during assembling/handling

  • 0 … 50 °C

• Conductor category

  • Class 1 = solid

• Protective sheath

  • None

• Halogen free according to EN IEC 60754-2

  • Да

• Reaction-to-fire according to EN 13501-6: Flaming droplets/particles

  • None

• Cable height approximate

  • 5 mm

• Reaction-to-fire according to EN 13501-6: Smoke production

  • None

• Reaction-to-fire according to EN 13501-6: Class

  • Eca

• Cable width approximate

  • 5 mm

• Duplex

  • Не

• Cable type

  • U/UTP

• Conductor surface

  • Bare

• Oil resistant according to EN IEC 60811-404

  • Не

• Number of stranding elements

  • 4

• With rip cord

  • Не

• Suitable for use as security alarm cable

  • Не

• Reaction-to-fire according to EN 13501-6: Acidity

  • None

• Min. permitted bending radius, moving application/free movement

  • 22 mm

• Min. permitted bending radius, moving application with forced guidance

  • 40 mm

• Specification material outer sheath

  • Polyethylene (PE)

• Specification core insulation

  • Polyethylene (PE)

• Circuit integrity according to IEC 60331-23

  • Не

• Category

  • 5E

• Approved type of underground installation

  • Other

• Halogen free according to EN IEC 60754-3

  • Не

• Radial water blocking cable

  • Да

• Longitudinal water blocking cable

  • Не

• Stranding element

  • Pairs

• NVP value

  • 67 %

• Halogen free according to EN IEC 60754-1

  • Да

• Flame retardant according to IEC 60332-3-24 (Cat C)

  • Не

• Flame retardant according to IEC 60332-3-25 (Cat D)

  • Не

• Stranding

  • Bundle

• Screen over stranding

  • None

• Suitable for underground installation

  • Не

• Screen over stranding element

  • None

• Flame retardant according to IEC 60332-3-22 (Cat A)

  • Не

• Flame retardant according to IEC 60332-3-23 (Cat B)

  • Не

• Characteristic impedance

  • 100 Ohm

• Flame retardant according to IEC 60332-1-2

  • Да

• Flame retardant according to IEC 60332-3-21 (Cat A F/R)

  • Не

• AWG size

  • Other

• Compatible with Grade3TV according to XP-C 90-483

  • Не

• Core identification according to HD 308 S2

  • Не

• Suitable as telephone cable

  • Да

• Compatible with Grade2TV according to XP-C 90-483

  • Не

• Suitable as computer data cable

  • Да

• Suitable as signalling cable

  • Не

• Certified for shipboard application

  • Не

• Cable geometry

  • Round
